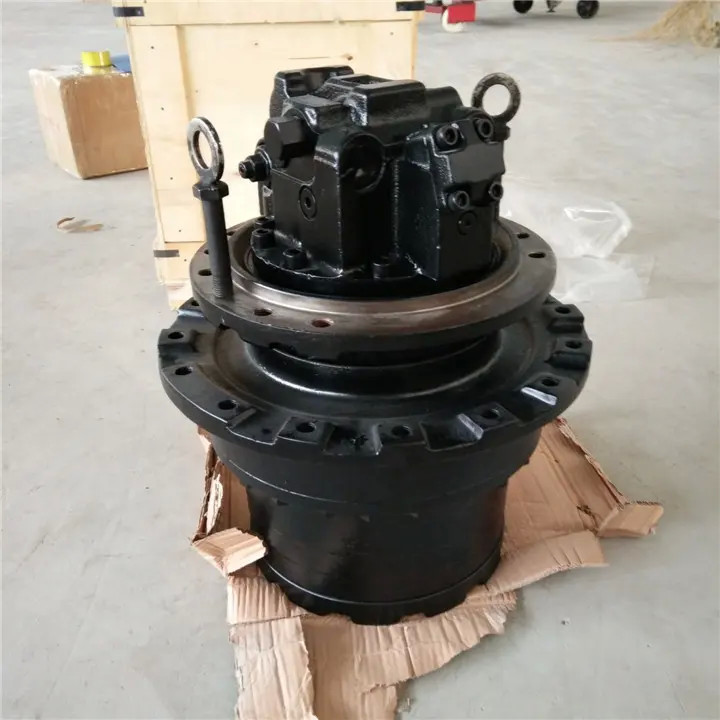

    9155253 Excavator Travel Device EX200-5 EX200-5 HMGF38A EX200-1 EX200-2 EX200-3 Travel Motor

    Ask Lasest Price
    Brand Name : BETTERPARTS
    Model Number : EX200-5
    Price : Negotiated price
    Payment Terms : T/T
    Supply Ability : 1000/month
    Delivery Time : 5 work days
    • Product Details
    • Company Profile

    9155253 Excavator Travel Device EX200-5 EX200-5 HMGF38A EX200-1 EX200-2 EX200-3 Travel Motor

    Excavator Travel Device EX200-5 Travel Motor 9155253 EX200-5 HMGF38A EX200-1 EX200-2 EX200-3 EX200-5Final Drive

    Hitachi Excavator 4448321 ZX200-6 ZX200-1 ZX210 ZX200 Travel Motor Assy ZX200 Final Drive


    Product Parameter
    Product name
    Excavator travel motor
    Model
    EX200-5
    Quality
    100% Professional Test
    Condition
    new
    Packing
    Standar packing
    Material
    Steel
    MOQ
    1 pcs
    Delivery
    Within 3days after received payment
    Place of Origin
    Ghuangzhou,China
    Warranty
    6 months
    Specific Use
    Make the excavator have stronger axial force and radial force when working.
    Product Description
    Provide strong power for the operation of the excavator.
    Scope of appliion
    Various brands of excavators
    After service
    Online support

    9155253 Excavator Travel Device EX200-5 EX200-5 HMGF38A EX200-1 EX200-2 EX200-3 Travel Motor

    • Final Driving Installation Precautions:
    • Check the piping and flexible hose is correctly installed. Ensure correct direction of rotation of the motor is achieved.
    • Check for leakage from all motor parts.
    • Ensure the system is operating within the specified working temperature.
    • Check the pressure is operating within specified range.
    • Diagnosis & Maintenance
    • If motor is running with an unusual sound, unscrew the plug from the case drain and check whether the oil level is present. add
    • the oil level if required and ensure to bleed the trapped air from the circuit. also check the oil quality, if have impurities,
    • need replace the oil and keep it clean. to keep the life of the Track Drive Motor.
    • • If you still experience abnormal operation of the motor, check the pressure throughout the work circuit to assess whether or not
    • the motor is breakdown.
    #
    Part No
    Part Name
    Qty.
    9191194
    TRAVEL DEVICE (FOR ASSEMBLY OF MACHINE)
    2
    9199841
    TRAVEL DEVICE (FOR TRANSPORTATION)
    2
    00
    9190295
    MOTOR; OIL (FOR ASSEMBLY OF MACHINE)
    1
    00
    9200288
    MOTOR; OIL (FOR TRANSPORTATION)
    1
    02
    4114753
    EAL; GROUP
    1
    03
    4246793
    *BRG.; ROL.
    2
    04
    1027152
    *DRUM
    1
    05
    1010203
    *SPROCKET
    1
    06
    J932055
    *BOLT
    16
    07
    A590920
    *WASHER; SPRING
    16
    08
    3086531
    *NUT
    1
    11
    4436242
    *PIN; KNOCK
    1
    12
    1026779
    *CARRIER
    1
    13
    3085966
    *GEAR; PLANETARY
    3
    14
    4445531
    *BRG.; NEEDLE
    6
    15
    4284521
    *PLATE; THRUST
    6
    16
    4139975
    *PIN
    3
    17
    4116309
    *PIN; SPRING
    3
    18
    3085927
    *GEAR; SUN
    1
    20
    1027158
    *GEAR; RING
    1
    21
    J931640
    *BOLT
    28
    23
    1027161
    *CARRIER
    1
    24
    4401293
    *SPACER
    2
    25
    3085985
    *GEAR; PLANETARY
    3
    26
    4445529
    *BRG.; NEEDLE
    3
    27
    4210851
    *PLATE; THRUST
    6
    28
    4309995
    *
    3
    29
    4246358
    *PIN; SPRING
    3
    30
    3085941
    *GEAR; SUN
    1
    32
    1027160
    *CARRIER
    1
    33
    3086006
    *GEAR; PLANETARY
    3
    34
    4406589
    *BRG.; NEEDLE
    3
    35
    4192910
    *PLATE; THRUST
    6
    36
    4210853
    *PIN
    3
    37
    4173093
    *PIN; SPRING
    3
    38
    2043851
    *SHAFT; PROP
    1
    40
    2043868
    *COVER
    1
    41
    4285323
    *PIN; STOPPER
    1
    42
    J011230
    *BOLT; SEMS
    12
    43
    4245797
    *PLUG
    3
    46
    3053559
    *NAME-PLATE
    1
    47
    M492564
    *SCREW; DRIVE
    2
    43
    4245797
    . PLUG
    3
    46
    3053559
    . NAME-PLATE
    1
    47
    M492564
    . SCREW; DRIVE
    2
