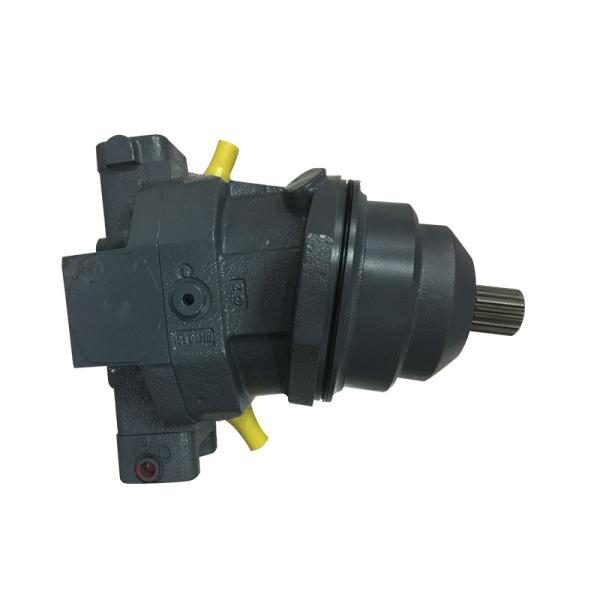

hydraulic fluid A6VE160 A6VE200 A6VE250 BENT AXIS Hydraulic Motor
WITH REXROTh
Warranty:1 Year, 1 Year
Showroom Loion:None
Brand Name:Rexroth
Place of Origin:Foshan, CN
Motor Type:Piston Motor
Displacement:280cm³
Type:Hydraulic Motors
Material:Carbon Steel
Appliion:Construction Machinery
Color:Blue
Structure:Piston Motor
Standard or Nonstandard:Standard
Pressure:High Pressure
After Warranty Service:Video technical support
Local Service Loion:None
After-sales Service Provided:Online support |
Details regarding the choice of hydraulic fluid
The correct choice of hydraulic fluid requires knowledge of the
operating temperature in relation to the ambient temperature: in
a closed circuit the circuit temperature. The hydraulic fluid
should be chosen so that the operating viscosity in the operating
temperature range is within the optimum range - the shaded area of
the selection diagram. We recommended that the higher viscosity
class be selected in each . Example: At an ambient temperature of X
°C an operating temperature of 60 °C is set. In the optimum
operating viscosity range (shaded area) this corresponds to the
viscosity classes VG 46 or VG 68; to be selected: VG 68. Please
note: The drain temperature, which is affected by pressure and
speed, is always higher than the circuit temperature. At no point
in the system may the temperature be higher than 115 °C. If the
above conditions cannot be maintained due to extreme operating
parameters, please consult us.
Hydraulic fluid Before starting project planning, please refer to
our data sheets RE 90220 (mineral oil), RE 90221 (environmentally
acceptable hydraulic fluids) and RE 90223 (HF hydraulic fluids) for
detailed information regarding the choice of hydraulic fluid and
appliion conditions. The variable pump A4VG is unsuitable for
operation with HFA, HFB and HFC. If HFD or environmentally
acceptable hydraulic fluids are being used, the limitations
regarding technical data and seals mentioned in RE 90221 and RE
90223 must be observed. When ordering, please indie the used
hydraulic fluid.
BTPS AVAILABLE BRAND
Our advantages:
The company is the first industry expert engaged in the maintenance
of hydraulic pumps and motors in China, and has been engaged in
professional sales and maintenance business in the hydraulic field
for nearly 20 years since 1995, with skilled skills and rich
on-site experience.
Detection platform:
With domestic advanced hydraulic pump and hydraulic motor testing
platform, strict implementation of product quality testing
standards, to ensure that each hydraulic pump factory technical
parameters are fully in line with the technical requirements of the
original factory, can achieve the same use effect with the original
Rexroth hydraulic pump.
Reasonable price:
Excellent hydraulic technology and experience highlight the quality
while reducing the cost, greatly improve the cost performance.
After-sales service:
Comus hydraulic company has set up offices in many places in the
country, sales area staff have rich professional knowledge and
on-site experience, will be the first time to provide you with
professional and quality service.
Service Concept:
To provide customers with high quality and maximum value of
professional products and services, with sincerity and strength to
win customers' understanding, respect and support. The company in
line with the "customer first, quality first" service concept,
strict implementation of product quality testing standards, and
strive to be a trustworthy manufacturer of hydraulic pumps.
Market recognition:
At present, Comus hydraulic pumps in iron and steel metallurgy,
forging, ceramics, water conservancy and hydropower, engineering
machinery, shipbuilding, mining, agricultural machinery and other
fields have been vigorously developed, reliable quality and
superior services have been recognized by the majority of
customers. In the enterprise to reduce costs, ensure the production
of outstanding contributions.
