    A4FM Series Variable Piston Type Hydraulic Pump For Rexroth A4FM250 A4FM500

    Ask Lasest Price
    Brand Name : BTPS
    Model Number : A4FM Series
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 500/month
    Delivery Time : 7days
    MOQ : 1pcs
    • Product Details
    • Company Profile

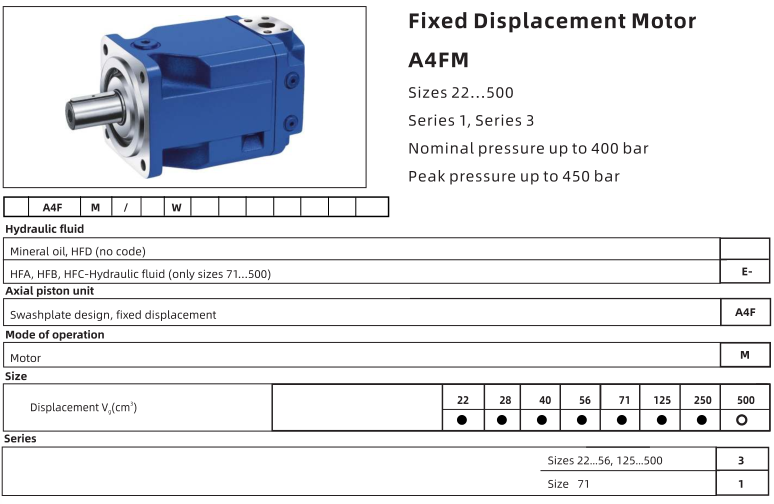

    A4FM Series Variable Piston Type Hydraulic Pump For Rexroth A4FM250 A4FM500

    High Quality Rexroth Hydraulic Pition Pump A4FM Series for Rexroth A4FM250 A4FM500


    Better parts company specialize in research and development,production and sales of hydraulic products.We have more than 8 years experience focusing on the overseas Market.

    Our main products is hydraulic pump,motor,valve,gear box ,gear pump,spare parts,ect.Involved in hydraulic brands:Rexroth,Parker,Eaton-Vickers,Linde,Sauer-Danfoss and so on.We always adhere to the "High Quality,best service,competitive price ”product concept.

    Welcome new and old customers from all over the world to contact us for future business relationship and mutual sucess


    Safety instructions
    The pump housing must be filled with hydraulic oil (injected into the housing cavity) during startup and operation. Must start at low speed without load until the system is completely empty.
    When parked for a long time, the shell can be drained through the working pipeline. When restarting, ensure sufficient oil is injected into the housing.
    The minimum suction pressure of the oil port S shall not fall below 0.8 bar.


    Installation position

    The axis is horizontal at the bottom. When installed on the tank, do not allow the installation position of "shaft horizontal, oil suction toward the bottom"!


    Install below tank level

    Pump position below minimum oil level in tank (standard)

    Add an axial piston pump before starting by going through the uppermost oil drain of the housing

    Suggestion: Add suction tube

    Run the pump at a low speed (ignition speed) until the pump system is fully filled

    The minimum submersion depth of the suction or drain line in the tank: 200 mm (relative to the lowest oil level in the tank).


    Install above tank level

    A pump installed above the lowest oil level in the tank

    The installation position is lower than the oil tank level

    The installation position of "the shaft is against the top" and "the shaft is level and the oil suction mouth is at the bottom" is not allowed (when the pump housing stops, it leaks oil through the suction pipe).

    Note: - The maximum allowable straw length hmax = 800 mm

    - Minimum allowable pressure of oil port S (minimum oil suction pressure)
