BTPS AVAILABLE BRAND

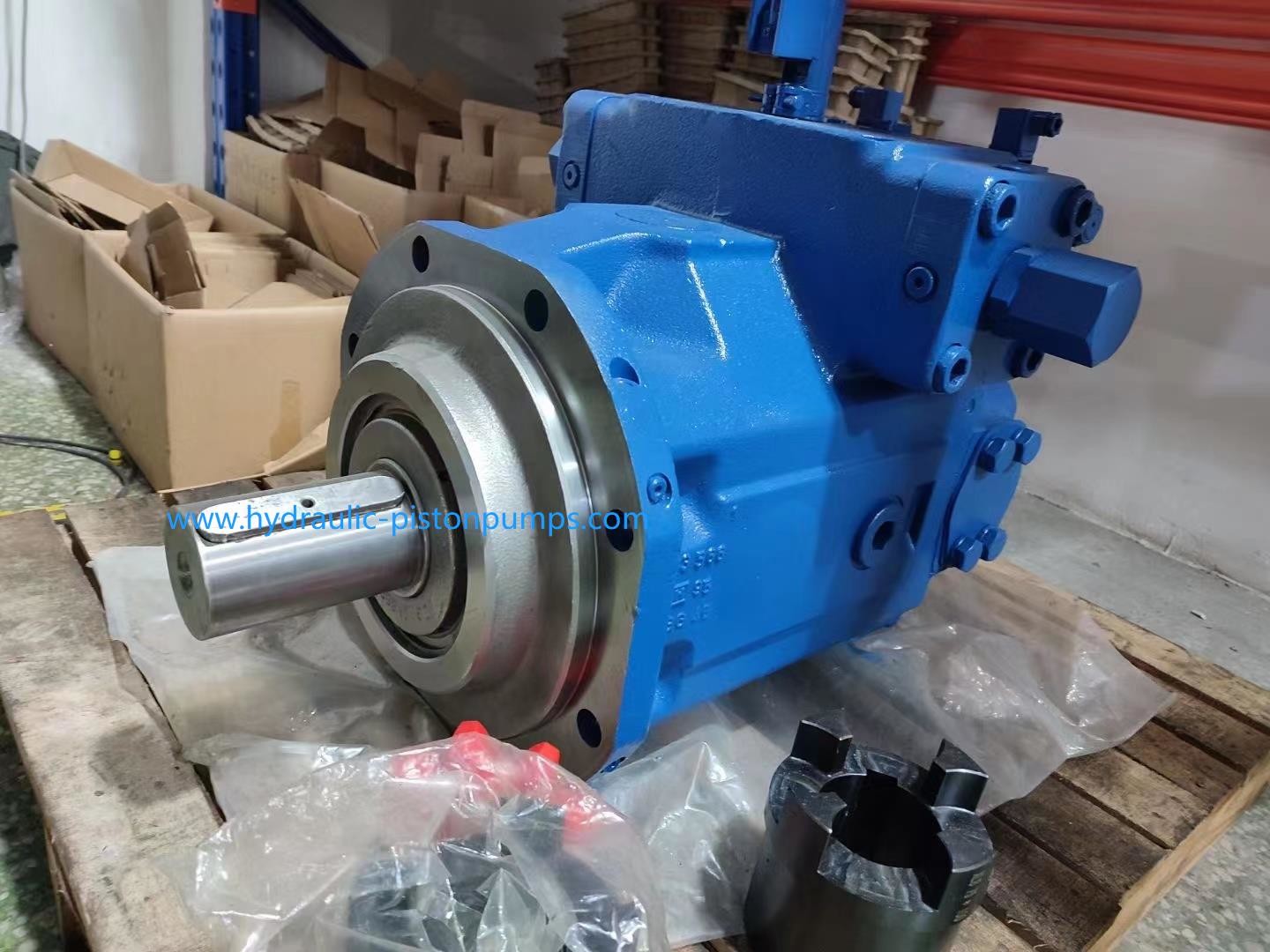

Rexroth A4VO500 A4VSO750 High Pressure Hydraulic Piston Pumprexroth
Hydraulic Pump Repair Rexroth Variable Displacement
Better parts company specialize in research and
development,production and sales of hydraulic products.We have more
than 8 years experience focusing on the overseas Market.
Our main products is hydraulic pump,motor,valve,gear box ,gear
pump,spare parts,ect.Involved in hydraulic
brands:Rexroth,Parker,Eaton-Vickers,Linde,Sauer-Danfoss and so
on.We always adhere to the "High Quality,best service,competitive
price ”product concept.
Welcome new and old customers from all over the world to contact us
for future business relationship and mutual sucess
| SERIES | A4VG Series high pressure |
| SPECIFIION | 28/40/56/71/90/125/180/250 |
| WORKING PRESSURE | Nominal pressure40MPa,Peak Pressure 45MPa |
| CONTROL METHOD | Type NV, without controls
DG-hydraulic control, direct control
EZ-Electrical two-point control, with switch electromagnet
HD - Hydraulic control, related to pilot pressure
HW - hydraulic control, mechanical servo
EP-electrical control with proportional solenoid
DA - hydraulic control, related to deceleration |
| CHARACTERISTIC | ◆Swashplate type axial piston variable displacement pump for closed
circuit hydrostatic transmission
◆The flow is proportional to the driving speed and displacement and
can be infinitely variable;
◆The flow rate increases from zero to its maximum value with the
swash plate swing angle;
◆Swing the swash plate over the neutral position can smoothly
change the flow direction of the liquid;
◆Multiple variable modes that are easy to match with various
control and regulation systems;
◆The pump is equipped with two relief valves on the high pressure
oil side to protect the hydrostatic transmission (pump and motor)
from overloading;
◆The high pressure relief valve also has the function of oil
filling valve;
◆Built-in auxiliary pump is used as charge pump and control pump;
◆The maximum charging pressure is limited by a built-in charging
relief valve;
◆Full series with built-in pressure shut-off valve; |
The characteristics of Eternal A4VG pump:
1. The capacity of the pump is in proportion to its rotating speed
and displacement; the stepless adjustment of the displacement
can be materialized by regulating the swivel angle of its swash
plate.
2. With through-shaft structure, able to form combination pump.
3. Position constraint return mechanism.
4. Spherical flow distribution, the piston is inclined around the
shaft.
5. Equipped with swivel angle indior of swash plate.
6. Stepless variable displacement.
7. Excellent suction performance.
8. Rated working pressure of 35MPa.
9. Fast control response.
10. Low noise.
11. Long lifespan.
12. Excellent power/weight ratio.
13. Modular design.
14. The drive shaft is able to bear the axial and radial load.
15. Optional installation position.
16. It can operate with HF fluid to lower the operating parameter.
17.Completely interchangeable with original
Eternal products including Piston Pump, Vane Pump, Gear Pump, Hydraulic Valve, Hydraulic
Motor, Electric Motor, Oil Cooler, Accumulator and other hydraulic
accessories etc
Hydraulic Piston Pump Series including CY, A2F, A2FO, A7V, A4V, A10V Series, which is the same as Orignal Rexroth, the same appreance, mounting size and working perofrmance.
The products are widely used in machine tool, forging machinery,
metallurgy machinery, engineering machinery, mine machinery and
other hydraulic systems. They also can be used as hydraulic motors
if the valve plate is changed into motor type.
