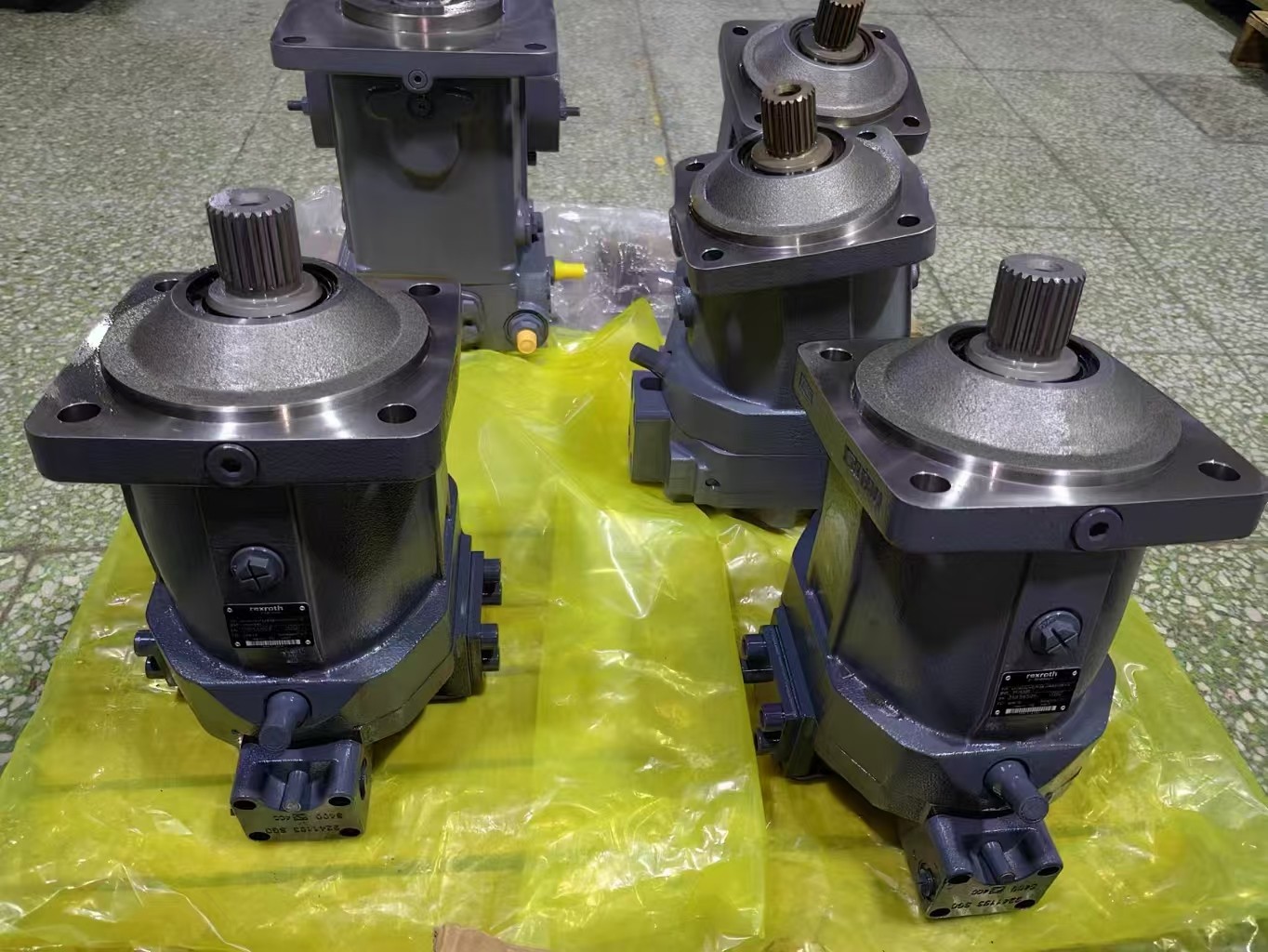

Rexroth A2FM 6X Series Axial Piston Fixed Motor
All-purpose high pressure motor
Size 5 … 1000
Nominal pressure up to 400 bar
Maximum pressure up 450 bar
Open and closed circuit
Metric version
Technical data
| Size | 5 | 10 | 12 | 16 | 23 | 28 | 32 | 107 | 125 | 160 | 180 | 200 | 250 | 355 | 500 |
Displacement
geometric, per revolution | Vg | cm³ | 4.93 | 10.3 | 12 | 16 | 22.9 | 28.1 | 32 | 106.7 | 125 | 160.4 | 180 | 200 | 250 | 355 | 500 |
| Nominal pressure | pnom | bar | 315 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 350 | 350 | 350 |
| Maximum pressure | pmax | bar | 350 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 400 | 400 | 400 |
| Maximum speed | nnom 1) | rpm | 10000 | 8000 | 8000 | 8000 | 6300 | 6300 | 6300 | 4000 | 4000 | 3600 | 3600 | 2750 | 2700 | 2240 | 2000 |
| nmax 2) | rpm | 11000 | 8800 | 8800 | 8800 | 6900 | 6900 | 6900 | 4400 | 4400 | 4000 | 4000 | 3000 | | | |
| Inlet flow 3) | at nnom | qV | l/min | 49 | 82 | 96 | 128 | 144 | 177 | 202 | 427 | 500 | 577 | 648 | 550 | 675 | 795 | 1000 |
| Torque 4) | at pnom | M | Nm | 24.7 | 66 | 76 | 102 | 146 | 179 | 204 | 679 | 796 | 1021 | 1146 | 1273 | 1393 | 1978 | 2785 |
| Rotary stiffness | c | kNm/rad | 0.63 | 0.92 | 1.25 | 1.59 | 2.56 | 2.93 | 3.12 | 11.2 | 11.9 | 17.4 | 18.2 | 57.3 | 73.1 | 96.1 | 144 |
| Moment of inertia for rotary group | JTW | kg·m² | 0.00006 | 0.0004 | 0.0004 | 0.0004 | 0.0012 | 0.0012 | 0.0012 | 0.0116 | 0.0116 | 0.022 | 0.022 | 0.0353 | 0.061 | 0.102 | 0.178 |
| Maximum angular acceleration | ɑ | rad/s² | 5000 | 5000 | 5000 | 5000 | 6500 | 6500 | 6500 | 4500 | 4500 | 3500 | 3500 | 11000 | 10000 | 8300 | 5500 |
| Case volume | V | l | | 0.17 | 0.17 | 0.17 | 0.2 | 0.2 | 0.2 | 0.8 | 0.8 | 1.1 | 1.1 | 2.7 | 2.5 | 3.5 | 4.2 |
| Weight (approx.) | m | kg | 2.5 | 5.4 | 5.4 | 5.4 | 9.5 | 9.5 | 9.5 | 32 | 32 | 45 | 45 | 66 | 73 | 110 | 155 |
– Fixed motor with axial tapered piston rotary group of bent axis design, for hydrostatic drives in open and closed circuits – For use in mobile and stationary application areas – The output speed is dependent on the flow of the pump and the displacement of the motor. – The output torque increases with the pressure differential between the high and low pressure sides and with increasing displacement. – Careful selection of the displacements offered, permit sizes to be matched to practically every application
| A2FM Axial Hydraulic Piston Motor Specifications | 10 | 12 | 16 | 23 | 28 | 32 | 45 |
| Displacement | Vᶢ (ml/r) | 10.3 | 12 | 16 | 22.9 | 28.1 | 32 | 45.6 |
| Speed maximum | | nₙₒₘ (rpm) | 8000 | 8000 | 8000 | 6300 | 6300 | 6300 | 5600 |
| | nₘₐₓ (rpm) | 8800 | 8800 | 8800 | 6900 | 6900 | 6900 | 6200 |
| FLow at nₙₒₘ | Qv (L/min) | 82 | 96 | 128 | 144 | 177 | 202 | 255 |
| Torque at Vg and | ∆p=350bar | T (NM) | 57 | 67 | 89 | 128 | 157 | 178 | 254 |
| ∆p=400bar | T (NM) | 66 | 76 | 102 | 146 | 179 | 204 | 290 |
| Case Volume | (L) | 0.17 | 0.17 | 0.17 | 0.2 | 0.2 | 0.2 | 0.33 |
| Weight | (KG) | 5.4 | 5.4 | 5.4 | 9.5 | 9.5 | 9.5 | 13.5 |
| A2FM Axial Hydraulic Piston Motor Specifications | 56 | 63 | 80 | 90 | 107 | 125 | 160 |
| Displacement | Vᶢ (ml/r) | 56.1 | 63 | 80.4 | 90 | 106.7 | 125 | 160.4 |
| Speed maximum | | nₙₒₘ (rpm) | 5000 | 5000 | 4500 | 4500 | 4000 | 4000 | 3600 |
| | nₘₐₓ (rpm) | 5500 | 5500 | 5000 | 5000 | 4400 | 4400 | 4000 |
| FLow at nₙₒₘ | Qv (L/min) | 281 | 315 | 362 | 405 | 427 | 500 | 577 |
| Torque at Vg and | ∆p=350bar | T (NM) | 313 | 351 | 448 | 501 | 594 | 696 | 893 |
| ∆p=400bar | T (NM) | 357 | 401 | 512 | 573 | 679 | 796 | 1021 |
| Case Volume | (L) | 0.45 | 0.45 | 0.55 | 0.55 | 0.8 | 0.8 | 1.1 |
| Weight | (KG) | 18 | 18 | 23 | 23 | 32 | 32 | 45 |
| Notes:The above data sheet are not complete. For more information, please contact us! |
| A2FO Axial Hydraulic Piston Pump Specifications | 10 | 12 | 16 | 23 | 28 | 32 | 45 |
| Displacement | Vᶢ (ml/r) | 10.3 | 12 | 16 | 22.9 | 28.1 | 32 | 45.6 |
| Speed maximum | | nₙₒₘ (rpm) | 3150 | 3150 | 3150 | 2500 | 2500 | 2500 | 2240 |
| | nₘₐₓ (rpm) | 6000 | 6000 | 6000 | 4750 | 4750 | 4750 | 4250 |
| FLow at nₙₒₘ | Qv (L/min) | 32 | 38 | 50 | 57 | 70 | 80 | 102 |
| Power at qv max (Pump) | ∆p=350bar | Pmax (KW) | 19 | 22 | 29 | 33 | 41 | 47 | 60 |
| ∆p=400bar | Pmax (KW) | 22 | 25 | 34 | 38 | 47 | 53 | 68 |
| Torque at Vg and | ∆p=350bar | T (NM) | 57 | 67 | 89 | 128 | 157 | 178 | 254 |
| ∆p=400bar | T (NM) | 66 | 76 | 102 | 146 | 179 | 204 | 290 |
| Case Volume | (L) | 0.17 | 0.17 | 0.17 | 0.2 | 0.2 | 0.2 | 0.33 |
| Weight | (KG) | 5.4 | 5.4 | 5.4 | 9.5 | 9.5 | 9.5 | 13.5 |
| A2FO Axial Hydraulic Piston Pump Specifications | 56 | 63 | 80 | 90 | 107 | 125 | 160 |
| Displacement | Vᶢ (ml/r) | 56.1 | 63 | 80.4 | 90 | 106.7 | 125 | 160.4 |
| Speed maximum | | nₙₒₘ (rpm) | 2000 | 2000 | 1800 | 1800 | 1600 | 1600 | 1450 |
| | nₘₐₓ (rpm) | 3750 | 3750 | 3350 | 3350 | 3000 | 3000 | 2650 |
| FLow at nₙₒₘ | Qv (L/min) | 112 | 126 | 145 | 162 | 171 | 200 | 261 |
| Power at qv max (Pump) | ∆p=350bar | Pmax (KW) | 65 | 74 | 84 | 95 | 100 | 117 | 136 |
| ∆p=400bar | Pmax (KW) | 75 | 84 | 96 | 108 | 114 | 133 | 155 |
| Torque at Vg and | ∆p=350bar | T (NM) | 313 | 351 | 448 | 501 | 594 | 696 | 893 |
| ∆p=400bar | T (NM) | 357 | 401 | 512 | 573 | 679 | 796 | 1021 |
| Case Volume | (L) | 0.45 | 0.45 | 0.55 | 0.55 | 0.8 | 0.8 | 1.1 |
| Weight | (KG) | 18 | 18 | 23 | 23 | 32 | 32 | 45 |
| Notes:The above data sheet are not complete. For more information, please contact us! |
| Technical Parameter A2FE Axial Hydraulic Piston Motor |
| | | | | | | | | | |
| | | | | | | | | | |
| | | | | | | | | | |
| | | | | | | | | | |
Torque constant (N.m/Mpa) | | | | | | | | | |
Maximum torque(Δp=35Mpa) N.m | | | | | | | | | |
Maximum torque(Δp=40Mpa) N.m | | | | | | | | | |
Maximum power(Δp=35Mpa) KW | | | | | | | | | |
Maximum power(Δp=40Mpa) KW | | | | | | | | | |
| Notes:The above data sheet are not complete. For more information, please contact us! |
| A2FM5/60WPBB030 | A2FM5/60WPBB030J | A2FM5/60WPCB030 | A2FM5/60WPCB030J |
| A2FM5/60WVBB030 | A2FM5/60WVBB030J | A2FM5/60WVCB030 | A2FM5/60WVCB030J |
| A2FM10/61WPAB030 | A2FM10/61WPAB030J | A2FM10/61WPZB030 | A2FM10/61WPZB030J |
| A2FM10/61WPBB030 | A2FM10/61WPBB030J | A2FM10/61WPPB030 | A2FM10/61WPPB030J |
| A2FM10/61WVAB030 | A2FM10/61WVAB030J | A2FM10/61WVZB030 | A2FM10/61WVZB030J |
| A2FM10/61WVBB030 | A2FM10/61WVBB030J | A2FM10/61WVPB030 | A2FM10/61WVPB030J |
| A2FM10/61WPAB040 | A2FM10/61WPAB040J | A2FM10/61WPZB040 | A2FM10/61WPZB040J |
| A2FM10/61WPBB040 | A2FM10/61WPBB040J | A2FM10/61WPPB040 | A2FM10/61WPPB040J |
| A2FM10/61WVAB040 | A2FM10/61WVAB040J | A2FM10/61WVZB040 | A2FM10/61WVZB040J |
| A2FM10/61WVBB040 | A2FM10/61WVBB040J | A2FM10/61WVPB040 | A2FM10/61WVPB040J |
| A2FM12/61WPAB030 | A2FM12/61WPAB030J | A2FM12/61WPZB030 | A2FM12/61WPZB030J |
| A2FM12/61WPBB030 | A2FM12/61WPBB030J | A2FM12/61WPPB030 | A2FM12/61WPPB030J |
| A2FM12/61WVAB030 | A2FM12/61WVAB030J | A2FM12/61WVZB030 | A2FM12/61WVZB030J |
| A2FM12/61WVBB030 | A2FM12/61WVBB030J | A2FM12/61WVPB030 | A2FM12/61WVPB030J |
| A2FM12/61WPAB040 | A2FM12/61WPAB040J | A2FM12/61WPZB040 | A2FM12/61WPZB040J |
| A2FM12/61WPBB040 | A2FM12/61WPBB040J | A2FM12/61WPPB040 | A2FM12/61WPPB040J |
| A2FM12/61WVAB040 | A2FM12/61WVAB040J | A2FM12/61WVZB040 | A2FM12/61WVZB040J |
| A2FM12/61WVBB040 | A2FM12/61WVBB040J | A2FM12/61WVPB040 | A2FM12/61WVPB040J |
| A2FM16/61WPAB030 | A2FM16/61WPAB030J | A2FM16/61WPZB030 | A2FM16/61WPZB030J |
| A2FM16/61WPBB030 | A2FM16/61WPBB030J | A2FM16/61WPPB030 | A2FM16/61WPPB030J |
| A2FM16/61WVAB030 | A2FM16/61WVAB030J | A2FM16/61WVZB030 | A2FM16/61WVZB030J |
| A2FM16/61WVBB030 | A2FM16/61WVBB030J | A2FM16/61WVPB030 | A2FM16/61WVPB030J |
| A2FM16/61WPAB040 | A2FM16/61WPAB040J | A2FM16/61WPZB040 | A2FM16/61WPZB040J |
| A2FM16/61WPBB040 | A2FM16/61WPBB040J | A2FM16/61WPPB040 | A2FM16/61WPPB040J |
| A2FM16/61WVAB040 | A2FM16/61WVAB040J | A2FM16/61WVZB040 | A2FM16/61WVZB040J |
| A2FM16/61WVBB040 | A2FM16/61WVBB040J | A2FM16/61WVPB040 | A2FM16/61WVPB040J |
| A2FM23/61WPAB030 | A2FM23/61WPAB030J | A2FM23/61WPZB030 | A2FM23/61WPZB030J |
| A2FM23/61WPBB030 | A2FM23/61WPBB030J | A2FM23/61WPPB030 | A2FM23/61WPPB030J |
| A2FM23/61WVAB030 | A2FM23/61WVAB030J | A2FM23/61WVZB030 | A2FM23/61WVZB030J |
| A2FM23/61WVBB030 | A2FM23/61WVBB030J | A2FM23/61WVPB030 | A2FM23/61WVPB030J |
| A2FM23/61WPAB040 | A2FM23/61WPAB040J | A2FM23/61WPZB040 | A2FM23/61WPZB040J |
| A2FM23/61WPBB040 | A2FM23/61WPBB040J | A2FM23/61WPPB040 | A2FM23/61WPPB040J |
| A2FM23/61WVAB040 | A2FM23/61WVAB040J | A2FM23/61WVZB040 | A2FM23/61WVZB040J |
| A2FM23/61WVBB040 | A2FM23/61WVBB040J | A2FM23/61WVPB040 | A2FM23/61WVPB040J |
| A2FM23/61WPAB010 | A2FM23/61WPAB010J | A2FM23/61WPZB010 | A2FM23/61WPZB010J |
| A2FM23/61WPBB010 | A2FM23/61WPBB010J | A2FM23/61WPPB010 | A2FM23/61WPPB010J |
| A2FM23/61WVAB010 | A2FM23/61WVAB010J | A2FM23/61WVZB010 | A2FM23/61WVZB010J |
| A2FM23/61WVBB010 | A2FM23/61WVBB010J | A2FM23/61WVPB010 | A2FM23/61WVPB010J |
| A2FM23/61WPAB020 | A2FM23/61WPAB020J | A2FM23/61WPZB020 | A2FM23/61WPZB020J |
| A2FM23/61WPBB020 | A2FM23/61WPBB020J | A2FM23/61WPPB020 | A2FM23/61WPPB020J |
| A2FM23/61WVAB020 | A2FM23/61WVAB020J | A2FM23/61WVZB020 | A2FM23/61WVZB020J |
| A2FM23/61WVBB020 | A2FM23/61WVBB020J | A2FM23/61WVPB020 | A2FM23/61WVPB020J |
| A2FM28/61WPAB030 | A2FM28/61WPAB030J | A2FM28/61WPZB030 | A2FM28/61WPZB030J |
| A2FM28/61WPBB030 | A2FM28/61WPBB030J | A2FM28/61WPPB030 | A2FM28/61WPPB030J |
| A2FM28/61WVAB030 | A2FM28/61WVAB030J | A2FM28/61WVZB030 | A2FM28/61WVZB030J |
| A2FM28/61WVBB030 | A2FM28/61WVBB030J | A2FM28/61WVPB030 | A2FM28/61WVPB030J |
| A2FM28/61WPAB040 | A2FM28/61WPAB040J | A2FM28/61WPZB040 | A2FM28/61WPZB040J |
| A2FM28/61WPBB040 | A2FM28/61WPBB040J | A2FM28/61WPPB040 | A2FM28/61WPPB040J |
| A2FM28/61WVAB040 | A2FM28/61WVAB040J | A2FM28/61WVZB040 | A2FM28/61WVZB040J |
| A2FM28/61WVBB040 | A2FM28/61WVBB040J | A2FM28/61WVPB040 | A2FM28/61WVPB040J |
| A2FM28/61WPAB010 | A2FM28/61WPAB010J | A2FM28/61WPZB010 | A2FM28/61WPZB010J |
| A2FM28/61WPBB010 | A2FM28/61WPBB010J | A2FM28/61WPPB010 | A2FM28/61WPPB010J |
| A2FM28/61WVAB010 | A2FM28/61WVAB010J | A2FM28/61WVZB010 | A2FM28/61WVZB010J |
| A2FM28/61WVBB010 | A2FM28/61WVBB010J | A2FM28/61WVPB010 | A2FM28/61WVPB010J |
| A2FM28/61WPAB020 | A2FM28/61WPAB020J | A2FM28/61WPZB020 | A2FM28/61WPZB020J |
| A2FM28/61WPBB020 | A2FM28/61WPBB020J | A2FM28/61WPPB020 | A2FM28/61WPPB020J |
| A2FM28/61WVAB020 | A2FM28/61WVAB020J | A2FM28/61WVZB020 | A2FM28/61WVZB020J |
| A2FM28/61WVBB020 | A2FM28/61WVBB020J | A2FM28/61WVPB020 | A2FM28/61WVPB020J |
| A2FM28/61WPAB100 | A2FM28/61WPAB100J | A2FM28/61WPZB100 | A2FM28/61WPZB100J |
| A2FM28/61WPBB100 | A2FM28/61WPBB100J | A2FM28/61WPPB100 | A2FM28/61WPPB100J |
| A2FM28/61WVAB100 | A2FM28/61WVAB100J | A2FM28/61WVZB100 | A2FM28/61WVZB100J |
| A2FM28/61WVBB100 | A2FM28/61WVBB100J | A2FM28/61WVPB100 | A2FM28/61WVPB100J |
| A2FM28/61WPAB181 | A2FM28/61WPAB181J | A2FM28/61WPZB181 | A2FM28/61WPZB181J |
| A2FM28/61WPBB181 | A2FM28/61WPBB181J | A2FM28/61WPPB181 | A2FM28/61WPPB181J |
| A2FM28/61WVAB181 | A2FM28/61WVAB181J | A2FM28/61WVZB181 | A2FM28/61WVZB181J |
| A2FM28/61WVBB181 | A2FM28/61WVBB181J | A2FM28/61WVPB181 | A2FM28/61WVPB181J |
| A2FM28/61WPAB191 | A2FM28/61WPAB191J | A2FM28/61WPZB191 | A2FM28/61WPZB191J |
| A2FM28/61WPBB191 | A2FM28/61WPBB191J | A2FM28/61WPPB191 | A2FM28/61WPPB191J |
| A2FM28/61WVAB191 | A2FM28/61WVAB191J | A2FM28/61WVZB191 | A2FM28/61WVZB191J |
| A2FM28/61WVBB191 | A2FM28/61WVBB191J | A2FM28/61WVPB191 | A2FM28/61WVPB191J |
| A2FM28/61WPAB192 | A2FM28/61WPAB192J | A2FM28/61WPZB192 | A2FM28/61WPZB192J |
| A2FM28/61WPBB192 | A2FM28/61WPBB192J | A2FM28/61WPPB192 | A2FM28/61WPPB192J |
| A2FM28/61WVAB192 | A2FM28/61WVAB192J | A2FM28/61WVZB192 | A2FM28/61WVZB192J |
| A2FM28/61WVBB192 | A2FM28/61WVBB192J | A2FM28/61WVPB192 | A2FM28/61WVPB192J |
| A2FM32/61WPAB030 | A2FM32/61WPAB030J | A2FM32/61WPZB030 | A2FM32/61WPZB030J |
| A2FM32/61WPBB030 | A2FM32/61WPBB030J | A2FM32/61WPPB030 | A2FM32/61WPPB030J |
| A2FM32/61WVAB030 | A2FM32/61WVAB030J | A2FM32/61WVZB030 | A2FM32/61WVZB030J |
| A2FM32/61WVBB030 | A2FM32/61WVBB030J | A2FM32/61WVPB030 | A2FM32/61WVPB030J |
| A2FM32/61WPAB040 | A2FM32/61WPAB040J | A2FM32/61WPZB040 | A2FM32/61WPZB040J |
| A2FM32/61WPBB040 | A2FM32/61WPBB040J | A2FM32/61WPPB040 | A2FM32/61WPPB040J |
| A2FM32/61WVAB040 | A2FM32/61WVAB040J | A2FM32/61WVZB040 | A2FM32/61WVZB040J |
| A2FM32/61WVBB040 | A2FM32/61WVBB040J | A2FM32/61WVPB040 | A2FM32/61WVPB040J |
| A2FM32/61WPAB010 | A2FM32/61WPAB010J | A2FM32/61WPZB010 | A2FM32/61WPZB010J |
| A2FM32/61WPBB010 | A2FM32/61WPBB010J | A2FM32/61WPPB010 | A2FM32/61WPPB010J |
| A2FM32/61WVAB010 | A2FM32/61WVAB010J | A2FM32/61WVZB010 | A2FM32/61WVZB010J |
| A2FM32/61WVBB010 | A2FM32/61WVBB010J | A2FM32/61WVPB010 | A2FM32/61WVPB010J |
| A2FM32/61WPAB020 | A2FM32/61WPAB020J | A2FM32/61WPZB020 | A2FM32/61WPZB020J |
| A2FM32/61WPBB020 | A2FM32/61WPBB020J | A2FM32/61WPPB020 | A2FM32/61WPPB020J |
| A2FM32/61WVAB020 | A2FM32/61WVAB020J | A2FM32/61WVZB020 | A2FM32/61WVZB020J |
| A2FM32/61WVBB020 | A2FM32/61WVBB020J | A2FM32/61WVPB020 | A2FM32/61WVPB020J |
| A2FM32/61WPAB100 | A2FM32/61WPAB100J | A2FM32/61WPZB100 | A2FM32/61WPZB100J |
| A2FM32/61WPBB100 | A2FM32/61WPBB100J | A2FM32/61WPPB100 | A2FM32/61WPPB100J |
| A2FM32/61WVAB100 | A2FM32/61WVAB100J | A2FM32/61WVZB100 | A2FM32/61WVZB100J |
| A2FM32/61WVBB100 | A2FM32/61WVBB100J | A2FM32/61WVPB100 | A2FM32/61WVPB100J |
| A2FM32/61WPAB181 | A2FM32/61WPAB181J | A2FM32/61WPZB181 | A2FM32/61WPZB181J |
| A2FM32/61WPBB181 | A2FM32/61WPBB181J | A2FM32/61WPPB181 | A2FM32/61WPPB181J |
| A2FM32/61WVAB181 | A2FM32/61WVAB181J | A2FM32/61WVZB181 | A2FM32/61WVZB181J |
| A2FM32/61WVBB181 | A2FM32/61WVBB181J | A2FM32/61WVPB181 | A2FM32/61WVPB181J |
| A2FM32/61WPAB191 | A2FM32/61WPAB191J | A2FM32/61WPZB191 | A2FM32/61WPZB191J |
| A2FM32/61WPBB191 | A2FM32/61WPBB191J | A2FM32/61WPPB191 | A2FM32/61WPPB191J |
| A2FM32/61WVAB191 | A2FM32/61WVAB191J | A2FM32/61WVZB191 | A2FM32/61WVZB191J |
| A2FM32/61WVBB191 | A2FM32/61WVBB191J | A2FM32/61WVPB191 | A2FM32/61WVPB191J |
| A2FM32/61WPAB192 | A2FM32/61WPAB192J | A2FM32/61WPZB192 | A2FM32/61WPZB192J |
| A2FM32/61WPBB192 | A2FM32/61WPBB192J | A2FM32/61WPPB192 | A2FM32/61WPPB192J |
| A2FM32/61WVAB192 | A2FM32/61WVAB192J | A2FM32/61WVZB192 | A2FM32/61WVZB192J |
| A2FM32/61WVBB192 | A2FM32/61WVBB192J | A2FM32/61WVPB192 | A2FM32/61WVPB192J |
| A2FM45/61WPAB027 | A2FM45/61WPAB027J | A2FM45/61WPZB027 | A2FM45/61WPZB027J |
| A2FM45/61WPBB027 | A2FM45/61WPBB027J | A2FM45/61WPPB027 | A2FM45/61WPPB027J |
| A2FM45/61WVAB027 | A2FM45/61WVAB027J | A2FM45/61WVZB027 | A2FM45/61WVZB027J |
| A2FM45/61WVBB027 | A2FM45/61WVBB027J | A2FM45/61WVPB027 | A2FM45/61WVPB027J |
| A2FM45/61WPAB040 | A2FM45/61WPAB040J | A2FM45/61WPZB040 | A2FM45/61WPZB040J |
| A2FM45/61WPBB040 | A2FM45/61WPBB040J | A2FM45/61WPPB040 | A2FM45/61WPPB040J |
| A2FM45/61WVAB040 | A2FM45/61WVAB040J | A2FM45/61WVZB040 | A2FM45/61WVZB040J |
| A2FM45/61WVBB040 | A2FM45/61WVBB040J | A2FM45/61WVPB040 | A2FM45/61WVPB040J |
| A2FM45/61WPAB010 | A2FM45/61WPAB010J | A2FM45/61WPZB010 | A2FM45/61WPZB010J |
| A2FM45/61WPBB010 | A2FM45/61WPBB010J | A2FM45/61WPPB010 | A2FM45/61WPPB010J |
| A2FM45/61WVAB010 | A2FM45/61WVAB010J | A2FM45/61WVZB010 | A2FM45/61WVZB010J |
| A2FM45/61WVBB010 | A2FM45/61WVBB010J | A2FM45/61WVPB010 | A2FM45/61WVPB010J |
| A2FM45/61WPAB020 | A2FM45/61WPAB020J | A2FM45/61WPZB020 | A2FM45/61WPZB020J |
| A2FM45/61WPBB020 | A2FM45/61WPBB020J | A2FM45/61WPPB020 | A2FM45/61WPPB020J |
| A2FM45/61WVAB020 | A2FM45/61WVAB020J | A2FM45/61WVZB020 | A2FM45/61WVZB020J |
| A2FM45/61WVBB020 | A2FM45/61WVBB020J | A2FM45/61WVPB020 | A2FM45/61WVPB020J |
| A2FM45/61WPAB100 | A2FM45/61WPAB100J | A2FM45/61WPZB100 | A2FM45/61WPZB100J |
| A2FM45/61WPBB100 | A2FM45/61WPBB100J | A2FM45/61WPPB100 | A2FM45/61WPPB100J |
| A2FM45/61WVAB100 | A2FM45/61WVAB100J | A2FM45/61WVZB100 | A2FM45/61WVZB100J |
| A2FM45/61WVBB100 | A2FM45/61WVBB100J | A2FM45/61WVPB100 | A2FM45/61WVPB100J |
| A2FM45/61WPAB181 | A2FM45/61WPAB181J | A2FM45/61WPZB181 | A2FM45/61WPZB181J |
| A2FM45/61WPBB181 | A2FM45/61WPBB181J | A2FM45/61WPPB181 | A2FM45/61WPPB181J |
| A2FM45/61WVAB181 | A2FM45/61WVAB181J | A2FM45/61WVZB181 | A2FM45/61WVZB181J |
| A2FM45/61WVBB181 | A2FM45/61WVBB181J | A2FM45/61WVPB181 | A2FM45/61WVPB181J |
| A2FM45/61WPAB191 | A2FM45/61WPAB191J | A2FM45/61WPZB191 | A2FM45/61WPZB191J |
| A2FM45/61WPBB191 | A2FM45/61WPBB191J | A2FM45/61WPPB191 | A2FM45/61WPPB191J |
| A2FM45/61WVAB191 | A2FM45/61WVAB191J | A2FM45/61WVZB191 | A2FM45/61WVZB191J |
| A2FM45/61WVBB191 | A2FM45/61WVBB191J | A2FM45/61WVPB191 | A2FM45/61WVPB191J |
| A2FM45/61WPAB192 | A2FM45/61WPAB192J | A2FM45/61WPZB192 | A2FM45/61WPZB192J |
| A2FM45/61WPBB192 | A2FM45/61WPBB192J | A2FM45/61WPPB192 | A2FM45/61WPPB192J |
| A2FM45/61WVAB192 | A2FM45/61WVAB192J | A2FM45/61WVZB192 | A2FM45/61WVZB192J |
| A2FM45/61WVBB192 | A2FM45/61WVBB192J | A2FM45/61WVPB192 | A2FM45/61WVPB192J |
| A2FM56/61WPAB029 | A2FM56/61WPAB029J | A2FM56/61WPZB029 | A2FM56/61WPZB029J |
| A2FM56/61WPBB029 | A2FM56/61WPBB029J | A2FM56/61WPPB029 | A2FM56/61WPPB029J |
| A2FM56/61WVAB029 | A2FM56/61WVAB029J | A2FM56/61WVZB029 | A2FM56/61WVZB029J |
| A2FM56/61WVBB029 | A2FM56/61WVBB029J | A2FM56/61WVPB029 | A2FM56/61WVPB029J |
| A2FM56/61WPAB040 | A2FM56/61WPAB040J | A2FM56/61WPZB040 | A2FM56/61WPZB040J |
| A2FM56/61WPBB040 | A2FM56/61WPBB040J | A2FM56/61WPPB040 | A2FM56/61WPPB040J |
| A2FM56/61WVAB040 | A2FM56/61WVAB040J | A2FM56/61WVZB040 | A2FM56/61WVZB040J |
| A2FM56/61WVBB040 | A2FM56/61WVBB040J | A2FM56/61WVPB040 | A2FM56/61WVPB040J |
| A2FM56/61WPAB010 | A2FM56/61WPAB010J | A2FM56/61WPZB010 | A2FM56/61WPZB010J |
| A2FM56/61WPBB010 | A2FM56/61WPBB010J | A2FM56/61WPPB010 | A2FM56/61WPPB010J |
| A2FM56/61WVAB010 | A2FM56/61WVAB010J | A2FM56/61WVZB010 | A2FM56/61WVZB010J |
| A2FM56/61WVBB010 | A2FM56/61WVBB010J | A2FM56/61WVPB010 | A2FM56/61WVPB010J |
| A2FM56/61WPAB020 | A2FM56/61WPAB020J | A2FM56/61WPZB020 | A2FM56/61WPZB020J |
| A2FM56/61WPBB020 | A2FM56/61WPBB020J | A2FM56/61WPPB020 | A2FM56/61WPPB020J |
| A2FM56/61WVAB020 | A2FM56/61WVAB020J | A2FM56/61WVZB020 | A2FM56/61WVZB020J |
| A2FM56/61WVBB020 | A2FM56/61WVBB020J | A2FM56/61WVPB020 | A2FM56/61WVPB020J |
| A2FM56/61WPAB100 | A2FM56/61WPAB100J | A2FM56/61WPZB100 | A2FM56/61WPZB100J |
| A2FM56/61WPBB100 | A2FM56/61WPBB100J | A2FM56/61WPPB100 | A2FM56/61WPPB100J |
| A2FM56/61WVAB100 | A2FM56/61WVAB100J | A2FM56/61WVZB100 | A2FM56/61WVZB100J |
| A2FM56/61WVBB100 | A2FM56/61WVBB100J | A2FM56/61WVPB100 | A2FM56/61WVPB100J |
| A2FM56/61WPAB181 | A2FM56/61WPAB181J | A2FM56/61WPZB181 | A2FM56/61WPZB181J |
| A2FM56/61WPBB181 | A2FM56/61WPBB181J | A2FM56/61WPPB181 | A2FM56/61WPPB181J |
| A2FM56/61WVAB181 | A2FM56/61WVAB181J | A2FM56/61WVZB181 | A2FM56/61WVZB181J |
| A2FM56/61WVBB181 | A2FM56/61WVBB181J | A2FM56/61WVPB181 | A2FM56/61WVPB181J |
| A2FM56/61WPAB191 | A2FM56/61WPAB191J | A2FM56/61WPZB191 | A2FM56/61WPZB191J |
| A2FM56/61WPBB191 | A2FM56/61WPBB191J | A2FM56/61WPPB191 | A2FM56/61WPPB191J |
| A2FM56/61WVAB191 | A2FM56/61WVAB191J | A2FM56/61WVZB191 | A2FM56/61WVZB191J |
| A2FM56/61WVBB191 | A2FM56/61WVBB191J | A2FM56/61WVPB191 | A2FM56/61WVPB191J |
| A2FM56/61WPAB192 | A2FM56/61WPAB192J | A2FM56/61WPZB192 | A2FM56/61WPZB192J |
| A2FM56/61WPBB192 | A2FM56/61WPBB192J | A2FM56/61WPPB192 | A2FM56/61WPPB192J |
| A2FM56/61WVAB192 | A2FM56/61WVAB192J | A2FM56/61WVZB192 | A2FM56/61WVZB192J |
| A2FM56/61WVBB192 | A2FM56/61WVBB192J | A2FM56/61WVPB192 | A2FM56/61WVPB192J |
| A2FM63/61WPAB029 | A2FM63/61WPAB029J | A2FM63/61WPZB029 | A2FM63/61WPZB029J |
| A2FM63/61WPBB029 | A2FM63/61WPBB029J | A2FM63/61WPPB029 | A2FM63/61WPPB029J |
| A2FM63/61WVAB029 | A2FM63/61WVAB029J | A2FM63/61WVZB029 | A2FM63/61WVZB029J |
| A2FM63/61WVBB029 | A2FM63/61WVBB029J | A2FM63/61WVPB029 | A2FM63/61WVPB029J |
| A2FM63/61WPAB040 | A2FM63/61WPAB040J | A2FM63/61WPZB040 | A2FM63/61WPZB040J |
| A2FM63/61WPBB040 | A2FM63/61WPBB040J | A2FM63/61WPPB040 | A2FM63/61WPPB040J |
| A2FM63/61WVAB040 | A2FM63/61WVAB040J | A2FM63/61WVZB040 | A2FM63/61WVZB040J |
| A2FM63/61WVBB040 | A2FM63/61WVBB040J | A2FM63/61WVPB040 | A2FM63/61WVPB040J |
| A2FM63/61WPAB010 | A2FM63/61WPAB010J | A2FM63/61WPZB010 | A2FM63/61WPZB010J |
| A2FM63/61WPBB010 | A2FM63/61WPBB010J | A2FM63/61WPPB010 | A2FM63/61WPPB010J |
| A2FM63/61WVAB010 | A2FM63/61WVAB010J | A2FM63/61WVZB010 | A2FM63/61WVZB010J |
| A2FM63/61WVBB010 | A2FM63/61WVBB010J | A2FM63/61WVPB010 | A2FM63/61WVPB010J |
| A2FM63/61WPAB020 | A2FM63/61WPAB020J | A2FM63/61WPZB020 | A2FM63/61WPZB020J |
| A2FM63/61WPBB020 | A2FM63/61WPBB020J | A2FM63/61WPPB020 | A2FM63/61WPPB020J |
| A2FM63/61WVAB020 | A2FM63/61WVAB020J | A2FM63/61WVZB020 | A2FM63/61WVZB020J |
| A2FM63/61WVBB020 | A2FM63/61WVBB020J | A2FM63/61WVPB020 | A2FM63/61WVPB020J |
| A2FM63/61WPAB100 | A2FM63/61WPAB100J | A2FM63/61WPZB100 | A2FM63/61WPZB100J |
| A2FM63/61WPBB100 | A2FM63/61WPBB100J | A2FM63/61WPPB100 | A2FM63/61WPPB100J |
| A2FM63/61WVAB100 | A2FM63/61WVAB100J | A2FM63/61WVZB100 | A2FM63/61WVZB100J |
| A2FM63/61WVBB100 | A2FM63/61WVBB100J | A2FM63/61WVPB100 | A2FM63/61WVPB100J |
| A2FM63/61WPAB181 | A2FM63/61WPAB181J | A2FM63/61WPZB181 | A2FM63/61WPZB181J |
| A2FM63/61WPBB181 | A2FM63/61WPBB181J | A2FM63/61WPPB181 | A2FM63/61WPPB181J |
| A2FM63/61WVAB181 | A2FM63/61WVAB181J | A2FM63/61WVZB181 | A2FM63/61WVZB181J |
| A2FM63/61WVBB181 | A2FM63/61WVBB181J | A2FM63/61WVPB181 | A2FM63/61WVPB181J |
| A2FM63/61WPAB191 | A2FM63/61WPAB191J | A2FM63/61WPZB191 | A2FM63/61WPZB191J |
| A2FM63/61WPBB191 | A2FM63/61WPBB191J | A2FM63/61WPPB191 | A2FM63/61WPPB191J |
| A2FM63/61WVAB191 | A2FM63/61WVAB191J | A2FM63/61WVZB191 | A2FM63/61WVZB191J |
| A2FM63/61WVBB191 | A2FM63/61WVBB191J | A2FM63/61WVPB191 | A2FM63/61WVPB191J |
| A2FM63/61WPAB192 | A2FM63/61WPAB192J | A2FM63/61WPZB192 | A2FM63/61WPZB192J |
| A2FM63/61WPBB192 | A2FM63/61WPBB192J | A2FM63/61WPPB192 | A2FM63/61WPPB192J |
| A2FM63/61WVAB192 | A2FM63/61WVAB192J | A2FM63/61WVZB192 | A2FM63/61WVZB192J |
| A2FM63/61WVBB192 | A2FM63/61WVBB192J | A2FM63/61WVPB192 | A2FM63/61WVPB192J |
| A2FM80/61WPAB029 | A2FM80/61WPAB029J | A2FM80/61WPZB029 | A2FM80/61WPZB029J |
| A2FM80/61WPBB029 | A2FM80/61WPBB029J | A2FM80/61WPPB029 | A2FM80/61WPPB029J |
| A2FM80/61WVAB029 | A2FM80/61WVAB029J | A2FM80/61WVZB029 | A2FM80/61WVZB029J |
| A2FM80/61WVBB029 | A2FM80/61WVBB029J | A2FM80/61WVPB029 | A2FM80/61WVPB029J |
| A2FM80/61WPAB010 | A2FM80/61WPAB010J | A2FM80/61WPZB010 | A2FM80/61WPZB010J |
| A2FM80/61WPBB010 | A2FM80/61WPBB010J | A2FM80/61WPPB010 | A2FM80/61WPPB010J |
| A2FM80/61WVAB010 | A2FM80/61WVAB010J | A2FM80/61WVZB010 | A2FM80/61WVZB010J |
| A2FM80/61WVBB010 | A2FM80/61WVBB010J | A2FM80/61WVPB010 | A2FM80/61WVPB010J |
| A2FM80/61WPAB020 | A2FM80/61WPAB020J | A2FM80/61WPZB020 | A2FM80/61WPZB020J |
| A2FM80/61WPBB020 | A2FM80/61WPBB020J | A2FM80/61WPPB020 | A2FM80/61WPPB020J |
| A2FM80/61WVAB020 | A2FM80/61WVAB020J | A2FM80/61WVZB020 | A2FM80/61WVZB020J |
| A2FM80/61WVBB020 | A2FM80/61WVBB020J | A2FM80/61WVPB020 | A2FM80/61WVPB020J |
| A2FM80/61WPAB100 | A2FM80/61WPAB100J | A2FM80/61WPZB100 | A2FM80/61WPZB100J |
| A2FM80/61WPBB100 | A2FM80/61WPBB100J | A2FM80/61WPPB100 | A2FM80/61WPPB100J |
| A2FM80/61WVAB100 | A2FM80/61WVAB100J | A2FM80/61WVZB100 | A2FM80/61WVZB100J |
| A2FM80/61WVBB100 | A2FM80/61WVBB100J | A2FM80/61WVPB100 | A2FM80/61WVPB100J |
| A2FM80/61WPAB181 | A2FM80/61WPAB181J | A2FM80/61WPZB181 | A2FM80/61WPZB181J |
| A2FM80/61WPBB181 | A2FM80/61WPBB181J | A2FM80/61WPPB181 | A2FM80/61WPPB181J |
| A2FM80/61WVAB181 | A2FM80/61WVAB181J | A2FM80/61WVZB181 | A2FM80/61WVZB181J |
| A2FM80/61WVBB181 | A2FM80/61WVBB181J | A2FM80/61WVPB181 | A2FM80/61WVPB181J |
| A2FM80/61WPAB191 | A2FM80/61WPAB191J | A2FM80/61WPZB191 | A2FM80/61WPZB191J |
| A2FM80/61WPBB191 | A2FM80/61WPBB191J | A2FM80/61WPPB191 | A2FM80/61WPPB191J |
| A2FM80/61WVAB191 | A2FM80/61WVAB191J | A2FM80/61WVZB191 | A2FM80/61WVZB191J |
| A2FM80/61WVBB191 | A2FM80/61WVBB191J | A2FM80/61WVPB191 | A2FM80/61WVPB191J |
| A2FM80/61WPAB192 | A2FM80/61WPAB192J | A2FM80/61WPZB192 | A2FM80/61WPZB192J |
| A2FM80/61WPBB192 | A2FM80/61WPBB192J | A2FM80/61WPPB192 | A2FM80/61WPPB192J |
| A2FM80/61WVAB192 | A2FM80/61WVAB192J | A2FM80/61WVZB192 | A2FM80/61WVZB192J |
| A2FM80/61WVBB192 | A2FM80/61WVBB192J | A2FM80/61WVPB192 | A2FM80/61WVPB192J |
| A2FM90/61WPAB029 | A2FM90/61WPAB029J | A2FM90/61WPZB029 | A2FM90/61WPZB029J |
| A2FM90/61WPBB029 | A2FM90/61WPBB029J | A2FM90/61WPPB029 | A2FM90/61WPPB029J |
| A2FM90/61WVAB029 | A2FM90/61WVAB029J | A2FM90/61WVZB029 | A2FM90/61WVZB029J |
| A2FM90/61WVBB029 | A2FM90/61WVBB029J | A2FM90/61WVPB029 | A2FM90/61WVPB029J |
| A2FM90/61WPAB010 | A2FM90/61WPAB010J | A2FM90/61WPZB010 | A2FM90/61WPZB010J |
| A2FM90/61WPBB010 | A2FM90/61WPBB010J | A2FM90/61WPPB010 | A2FM90/61WPPB010J |
| A2FM90/61WVAB010 | A2FM90/61WVAB010J | A2FM90/61WVZB010 | A2FM90/61WVZB010J |
| A2FM90/61WVBB010 | A2FM90/61WVBB010J | A2FM90/61WVPB010 | A2FM90/61WVPB010J |
| A2FM90/61WPAB020 | A2FM90/61WPAB020J | A2FM90/61WPZB020 | A2FM90/61WPZB020J |
| A2FM90/61WPBB020 | A2FM90/61WPBB020J | A2FM90/61WPPB020 | A2FM90/61WPPB020J |
| A2FM90/61WVAB020 | A2FM90/61WVAB020J | A2FM90/61WVZB020 | A2FM90/61WVZB020J |
| A2FM90/61WVBB020 | A2FM90/61WVBB020J | A2FM90/61WVPB020 | A2FM90/61WVPB020J |
| A2FM90/61WPAB100 | A2FM90/61WPAB100J | A2FM90/61WPZB100 | A2FM90/61WPZB100J |
| A2FM90/61WPBB100 | A2FM90/61WPBB100J | A2FM90/61WPPB100 | A2FM90/61WPPB100J |
| A2FM90/61WVAB100 | A2FM90/61WVAB100J | A2FM90/61WVZB100 | A2FM90/61WVZB100J |
| A2FM90/61WVBB100 | A2FM90/61WVBB100J | A2FM90/61WVPB100 | A2FM90/61WVPB100J |
| A2FM90/61WPAB181 | A2FM90/61WPAB181J | A2FM90/61WPZB181 | A2FM90/61WPZB181J |
| A2FM90/61WPBB181 | A2FM90/61WPBB181J | A2FM90/61WPPB181 | A2FM90/61WPPB181J |
| A2FM90/61WVAB181 | A2FM90/61WVAB181J | A2FM90/61WVZB181 | A2FM90/61WVZB181J |
| A2FM90/61WVBB181 | A2FM90/61WVBB181J | A2FM90/61WVPB181 | A2FM90/61WVPB181J |
| A2FM90/61WPAB191 | A2FM90/61WPAB191J | A2FM90/61WPZB191 | A2FM90/61WPZB191J |
| A2FM90/61WPBB191 | A2FM90/61WPBB191J | A2FM90/61WPPB191 | A2FM90/61WPPB191J |
| A2FM90/61WVAB191 | A2FM90/61WVAB191J | A2FM90/61WVZB191 | A2FM90/61WVZB191J |
| A2FM90/61WVBB191 | A2FM90/61WVBB191J | A2FM90/61WVPB191 | A2FM90/61WVPB191J |
| A2FM90/61WPAB192 | A2FM90/61WPAB192J | A2FM90/61WPZB192 | A2FM90/61WPZB192J |
| A2FM90/61WPBB192 | A2FM90/61WPBB192J | A2FM90/61WPPB192 | A2FM90/61WPPB192J |
| A2FM90/61WVAB192 | A2FM90/61WVAB192J | A2FM90/61WVZB192 | A2FM90/61WVZB192J |
| A2FM90/61WVBB192 | A2FM90/61WVBB192J | A2FM90/61WVPB192 | A2FM90/61WVPB192J |
| A2FM107/61WPAB191 | A2FM107/61WPAB191J | A2FM107/61WPZB191 | A2FM107/61WPZB191J |
| A2FM107/61WPBB191 | A2FM107/61WPBB191J | A2FM107/61WPPB191 | A2FM107/61WPPB191J |
| A2FM107/61WVAB191 | A2FM107/61WVAB191J | A2FM107/61WVZB191 | A2FM107/61WVZB191J |
| A2FM107/61WVBB191 | A2FM107/61WVBB191J | A2FM107/61WVPB191 | A2FM107/61WVPB191J |
| A2FM107/61WPAB192 | A2FM107/61WPAB192J | A2FM107/61WPZB192 | A2FM107/61WPZB192J |
| A2FM107/61WPBB192 | A2FM107/61WPBB192J | A2FM107/61WPPB192 | A2FM107/61WPPB192J |
| A2FM107/61WVAB192 | A2FM107/61WVAB192J | A2FM107/61WVZB192 | A2FM107/61WVZB192J |
| A2FM107/61WVBB192 | A2FM107/61WVBB192J | A2FM107/61WVPB192 | A2FM107/61WVPB192J |
| A2FM107/61WPAB171 | A2FM107/61WPAB171J | A2FM107/61WPZB171 | A2FM107/61WPZB171J |
| A2FM107/61WPBB171 | A2FM107/61WPBB171J | A2FM107/61WPPB171 | A2FM107/61WPPB171J |
| A2FM107/61WVAB171 | A2FM107/61WVAB171J | A2FM107/61WVZB171 | A2FM107/61WVZB171J |
| A2FM107/61WVBB171 | A2FM107/61WVBB171J | A2FM107/61WVPB171 | A2FM107/61WVPB171J |
| A2FM107/61WPAB178 | A2FM107/61WPAB178J | A2FM107/61WPZB178 | A2FM107/61WPZB178J |
| A2FM107/61WPBB178 | A2FM107/61WPBB178J | A2FM107/61WPPB178 | A2FM107/61WPPB178J |
| A2FM107/61WVAB178 | A2FM107/61WVAB178J | A2FM107/61WVZB178 | A2FM107/61WVZB178J |
| A2FM107/61WVBB178 | A2FM107/61WVBB178J | A2FM107/61WVPB178 | A2FM107/61WVPB178J |
| A2FM107/61WPAB188 | A2FM107/61WPAB188J | A2FM107/61WPZB188 | A2FM107/61WPZB188J |
| A2FM107/61WPBB188 | A2FM107/61WPBB188J | A2FM107/61WPPB188 | A2FM107/61WPPB188J |
| A2FM107/61WVAB188 | A2FM107/61WVAB188J | A2FM107/61WVZB188 | A2FM107/61WVZB188J |
| A2FM107/61WVBB188 | A2FM107/61WVBB188J | A2FM107/61WVPB188 | A2FM107/61WVPB188J |
| A2FM125/61WPAB027 | A2FM125/61WPAB027J | A2FM125/61WPZB027 | A2FM125/61WPZB027J |
| A2FM125/61WPBB027 | A2FM125/61WPBB027J | A2FM125/61WPPB027 | A2FM125/61WPPB027J |
| A2FM125/61WVAB027 | A2FM125/61WVAB027J | A2FM125/61WVZB027 | A2FM125/61WVZB027J |
| A2FM125/61WVBB027 | A2FM125/61WVBB027J | A2FM125/61WVPB027 | A2FM125/61WVPB027J |
| A2FM125/61WPAB010 | A2FM125/61WPAB010J | A2FM125/61WPZB010 | A2FM125/61WPZB010J |
| A2FM125/61WPBB010 | A2FM125/61WPBB010J | A2FM125/61WPPB010 | A2FM125/61WPPB010J |
| A2FM125/61WVAB010 | A2FM125/61WVAB010J | A2FM125/61WVZB010 | A2FM125/61WVZB010J |
| A2FM125/61WVBB010 | A2FM125/61WVBB010J | A2FM125/61WVPB010 | A2FM125/61WVPB010J |
| A2FM125/61WPAB020 | A2FM125/61WPAB020J | A2FM125/61WPZB020 | A2FM125/61WPZB020J |
| A2FM125/61WPBB020 | A2FM125/61WPBB020J | A2FM125/61WPPB020 | A2FM125/61WPPB020J |
| A2FM125/61WVAB020 | A2FM125/61WVAB020J | A2FM125/61WVZB020 | A2FM125/61WVZB020J |
| A2FM125/61WVBB020 | A2FM125/61WVBB020J | A2FM125/61WVPB020 | A2FM125/61WVPB020J |
| A2FM125/61WPAB100 | A2FM125/61WPAB100J | A2FM125/61WPZB100 | A2FM125/61WPZB100J |
| A2FM125/61WPBB100 | A2FM125/61WPBB100J | A2FM125/61WPPB100 | A2FM125/61WPPB100J |
| A2FM125/61WVAB100 | A2FM125/61WVAB100J | A2FM125/61WVZB100 | A2FM125/61WVZB100J |
| A2FM125/61WVBB100 | A2FM125/61WVBB100J | A2FM125/61WVPB100 | A2FM125/61WVPB100J |
| A2FM125/61WPAB181 | A2FM125/61WPAB181J | A2FM125/61WPZB181 | A2FM125/61WPZB181J |
| A2FM125/61WPBB181 | A2FM125/61WPBB181J | A2FM125/61WPPB181 | A2FM125/61WPPB181J |
| A2FM125/61WVAB181 | A2FM125/61WVAB181J | A2FM125/61WVZB181 | A2FM125/61WVZB181J |
| A2FM125/61WVBB181 | A2FM125/61WVBB181J | A2FM125/61WVPB181 | A2FM125/61WVPB181J |
| A2FM125/61WPAB191 | A2FM125/61WPAB191J | A2FM125/61WPZB191 | A2FM125/61WPZB191J |
| A2FM125/61WPBB191 | A2FM125/61WPBB191J | A2FM125/61WPPB191 | A2FM125/61WPPB191J |
| A2FM125/61WVAB191 | A2FM125/61WVAB191J | A2FM125/61WVZB191 | A2FM125/61WVZB191J |
| A2FM125/61WVBB191 | A2FM125/61WVBB191J | A2FM125/61WVPB191 | A2FM125/61WVPB191J |
| A2FM125/61WPAB192 | A2FM125/61WPAB192J | A2FM125/61WPZB192 | A2FM125/61WPZB192J |
| A2FM125/61WPBB192 | A2FM125/61WPBB192J | A2FM125/61WPPB192 | A2FM125/61WPPB192J |
| A2FM125/61WVAB192 | A2FM125/61WVAB192J | A2FM125/61WVZB192 | A2FM125/61WVZB192J |
| A2FM125/61WVBB192 | A2FM125/61WVBB192J | A2FM125/61WVPB192 | A2FM125/61WVPB192J |
| A2FM125/61WPAB171 | A2FM125/61WPAB171J | A2FM125/61WPZB171 | A2FM125/61WPZB171J |
| A2FM125/61WPBB171 | A2FM125/61WPBB171J | A2FM125/61WPPB171 | A2FM125/61WPPB171J |
| A2FM125/61WVAB171 | A2FM125/61WVAB171J | A2FM125/61WVZB171 | A2FM125/61WVZB171J |
| A2FM125/61WVBB171 | A2FM125/61WVBB171J | A2FM125/61WVPB171 | A2FM125/61WVPB171J |
| A2FM125/61WPAB178 | A2FM125/61WPAB178J | A2FM125/61WPZB178 | A2FM125/61WPZB178J |
| A2FM125/61WPBB178 | A2FM125/61WPBB178J | A2FM125/61WPPB178 | A2FM125/61WPPB178J |
| A2FM125/61WVAB178 | A2FM125/61WVAB178J | A2FM125/61WVZB178 | A2FM125/61WVZB178J |
| A2FM125/61WVBB178 | A2FM125/61WVBB178J | A2FM125/61WVPB178 | A2FM125/61WVPB178J |
| A2FM125/61WPAB188 | A2FM125/61WPAB188J | A2FM125/61WPZB188 | A2FM125/61WPZB188J |
| A2FM125/61WPBB188 | A2FM125/61WPBB188J | A2FM125/61WPPB188 | A2FM125/61WPPB188J |
| A2FM125/61WVAB188 | A2FM125/61WVAB188J | A2FM125/61WVZB188 | A2FM125/61WVZB188J |
| A2FM125/61WVBB188 | A2FM125/61WVBB188J | A2FM125/61WVPB188 | A2FM125/61WVPB188J |
| A2FM160/61WPAB027 | A2FM160/61WPAB027J | A2FM160/61WPZB027 | A2FM160/61WPZB027J |
| A2FM160/61WPBB027 | A2FM160/61WPBB027J | A2FM160/61WPPB027 | A2FM160/61WPPB027J |
| A2FM160/61WVAB027 | A2FM160/61WVAB027J | A2FM160/61WVZB027 | A2FM160/61WVZB027J |
| A2FM160/61WVBB027 | A2FM160/61WVBB027J | A2FM160/61WVPB027 | A2FM160/61WVPB027J |
| A2FM160/61WPAB010 | A2FM160/61WPAB010J | A2FM160/61WPZB010 | A2FM160/61WPZB010J |
| A2FM160/61WPBB010 | A2FM160/61WPBB010J | A2FM160/61WPPB010 | A2FM160/61WPPB010J |
| A2FM160/61WVAB010 | A2FM160/61WVAB010J | A2FM160/61WVZB010 | A2FM160/61WVZB010J |
| A2FM160/61WVBB010 | A2FM160/61WVBB010J | A2FM160/61WVPB010 | A2FM160/61WVPB010J |
| A2FM160/61WPAB020 | A2FM160/61WPAB020J | A2FM160/61WPZB020 | A2FM160/61WPZB020J |
| A2FM160/61WPBB020 | A2FM160/61WPBB020J | A2FM160/61WPPB020 | A2FM160/61WPPB020J |
| A2FM160/61WVAB020 | A2FM160/61WVAB020J | A2FM160/61WVZB020 | A2FM160/61WVZB020J |
| A2FM160/61WVBB020 | A2FM160/61WVBB020J | A2FM160/61WVPB020 | A2FM160/61WVPB020J |
| A2FM160/61WPAB100 | A2FM160/61WPAB100J | A2FM160/61WPZB100 | A2FM160/61WPZB100J |
| A2FM160/61WPBB100 | A2FM160/61WPBB100J | A2FM160/61WPPB100 | A2FM160/61WPPB100J |
| A2FM160/61WVAB100 | A2FM160/61WVAB100J | A2FM160/61WVZB100 | A2FM160/61WVZB100J |
| A2FM160/61WVBB100 | A2FM160/61WVBB100J | A2FM160/61WVPB100 | A2FM160/61WVPB100J |
| A2FM160/61WPAB181 | A2FM160/61WPAB181J | A2FM160/61WPZB181 | A2FM160/61WPZB181J |
| A2FM160/61WPBB181 | A2FM160/61WPBB181J | A2FM160/61WPPB181 | A2FM160/61WPPB181J |
| A2FM160/61WVAB181 | A2FM160/61WVAB181J | A2FM160/61WVZB181 | A2FM160/61WVZB181J |
| A2FM160/61WVBB181 | A2FM160/61WVBB181J | A2FM160/61WVPB181 | A2FM160/61WVPB181J |
| A2FM160/61WPAB191 | A2FM160/61WPAB191J | A2FM160/61WPZB191 | A2FM160/61WPZB191J |
| A2FM160/61WPBB191 | A2FM160/61WPBB191J | A2FM160/61WPPB191 | A2FM160/61WPPB191J |
| A2FM160/61WVAB191 | A2FM160/61WVAB191J | A2FM160/61WVZB191 | A2FM160/61WVZB191J |
| A2FM160/61WVBB191 | A2FM160/61WVBB191J | A2FM160/61WVPB191 | A2FM160/61WVPB191J |
| A2FM160/61WPAB192 | A2FM160/61WPAB192J | A2FM160/61WPZB192 | A2FM160/61WPZB192J |
| A2FM160/61WPBB192 | A2FM160/61WPBB192J | A2FM160/61WPPB192 | A2FM160/61WPPB192J |
| A2FM160/61WVAB192 | A2FM160/61WVAB192J | A2FM160/61WVZB192 | A2FM160/61WVZB192J |
| A2FM160/61WVBB192 | A2FM160/61WVBB192J | A2FM160/61WVPB192 | A2FM160/61WVPB192J |
| A2FM160/61WPAB188 | A2FM160/61WPAB188J | A2FM160/61WPZB188 | A2FM160/61WPZB188J |
| A2FM160/61WPBB188 | A2FM160/61WPBB188J | A2FM160/61WPPB188 | A2FM160/61WPPB188J |
| A2FM160/61WVAB188 | A2FM160/61WVAB188J | A2FM160/61WVZB188 | A2FM160/61WVZB188J |
| A2FM160/61WVBB188 | A2FM160/61WVBB188J | A2FM160/61WVPB188 | A2FM160/61WVPB188J |
| A2FM180/61WPAB027 | A2FM180/61WPAB027J | A2FM180/61WPZB027 | A2FM180/61WPZB027J |
| A2FM180/61WPBB027 | A2FM180/61WPBB027J | A2FM180/61WPPB027 | A2FM180/61WPPB027J |
| A2FM180/61WVAB027 | A2FM180/61WVAB027J | A2FM180/61WVZB027 | A2FM180/61WVZB027J |
| A2FM180/61WVBB027 | A2FM180/61WVBB027J | A2FM180/61WVPB027 | A2FM180/61WVPB027J |
| A2FM180/61WPAB010 | A2FM180/61WPAB010J | A2FM180/61WPZB010 | A2FM180/61WPZB010J |
| A2FM180/61WPBB010 | A2FM180/61WPBB010J | A2FM180/61WPPB010 | A2FM180/61WPPB010J |
| A2FM180/61WVAB010 | A2FM180/61WVAB010J | A2FM180/61WVZB010 | A2FM180/61WVZB010J |
| A2FM180/61WVBB010 | A2FM180/61WVBB010J | A2FM180/61WVPB010 | A2FM180/61WVPB010J |
| A2FM180/61WPAB020 | A2FM180/61WPAB020J | A2FM180/61WPZB020 | A2FM180/61WPZB020J |
| A2FM180/61WPBB020 | A2FM180/61WPBB020J | A2FM180/61WPPB020 | A2FM180/61WPPB020J |
| A2FM180/61WVAB020 | A2FM180/61WVAB020J | A2FM180/61WVZB020 | A2FM180/61WVZB020J |
| A2FM180/61WVBB020 | A2FM180/61WVBB020J | A2FM180/61WVPB020 | A2FM180/61WVPB020J |
| A2FM180/61WPAB100 | A2FM180/61WPAB100J | A2FM180/61WPZB100 | A2FM180/61WPZB100J |
| A2FM180/61WPBB100 | A2FM180/61WPBB100J | A2FM180/61WPPB100 | A2FM180/61WPPB100J |
| A2FM180/61WVAB100 | A2FM180/61WVAB100J | A2FM180/61WVZB100 | A2FM180/61WVZB100J |
| A2FM180/61WVBB100 | A2FM180/61WVBB100J | A2FM180/61WVPB100 | A2FM180/61WVPB100J |
| A2FM180/61WPAB181 | A2FM180/61WPAB181J | A2FM180/61WPZB181 | A2FM180/61WPZB181J |
| A2FM180/61WPBB181 | A2FM180/61WPBB181J | A2FM180/61WPPB181 | A2FM180/61WPPB181J |
| A2FM180/61WVAB181 | A2FM180/61WVAB181J | A2FM180/61WVZB181 | A2FM180/61WVZB181J |
| A2FM180/61WVBB181 | A2FM180/61WVBB181J | A2FM180/61WVPB181 | A2FM180/61WVPB181J |
| A2FM180/61WPAB191 | A2FM180/61WPAB191J | A2FM180/61WPZB191 | A2FM180/61WPZB191J |
| A2FM180/61WPBB191 | A2FM180/61WPBB191J | A2FM180/61WPPB191 | A2FM180/61WPPB191J |
| A2FM180/61WVAB191 | A2FM180/61WVAB191J | A2FM180/61WVZB191 | A2FM180/61WVZB191J |
| A2FM180/61WVBB191 | A2FM180/61WVBB191J | A2FM180/61WVPB191 | A2FM180/61WVPB191J |
| A2FM180/61WPAB192 | A2FM180/61WPAB192J | A2FM180/61WPZB192 | A2FM180/61WPZB192J |
| A2FM180/61WPBB192 | A2FM180/61WPBB192J | A2FM180/61WPPB192 | A2FM180/61WPPB192J |
| A2FM180/61WVAB192 | A2FM180/61WVAB192J | A2FM180/61WVZB192 | A2FM180/61WVZB192J |
| A2FM180/61WVBB192 | A2FM180/61WVBB192J | A2FM180/61WVPB192 | A2FM180/61WVPB192J |
| A2FM180/61WPAB188 | A2FM180/61WPAB188J | A2FM180/61WPZB188 | A2FM180/61WPZB188J |
| A2FM180/61WPBB188 | A2FM180/61WPBB188J | A2FM180/61WPPB188 | A2FM180/61WPPB188J |
| A2FM180/61WVAB188 | A2FM180/61WVAB188J | A2FM180/61WVZB188 | A2FM180/61WVZB188J |
| A2FM180/61WVBB188 | A2FM180/61WVBB188J | A2FM180/61WVPB188 | A2FM180/61WVPB188J |
| A2FM200/63WPAB010 | A2FM200/63WPAB010J | A2FM200/63WPZB010 | A2FM200/63WPZB010J |
| A2FM200/63WPBB010 | A2FM200/63WPBB010J | A2FM200/63WPPB010 | A2FM200/63WPPB010J |
| A2FM200/63WVAB010 | A2FM200/63WVAB010J | A2FM200/63WVZB010 | A2FM200/63WVZB010J |
| A2FM200/63WVBB010 | A2FM200/63WVBB010J | A2FM200/63WVPB010 | A2FM200/63WVPB010J |
| A2FM250/60WPZB010 | A2FM250/60WPZB010J | A2FM250/60WVZB010 | A2FM250/60WVZB010J |
| A2FM250/60WPPB010 | A2FM250/60WPPB010J | A2FM250/60WVPB010 | A2FM250/60WVPB010J |
| A2FM250/60WPZB020 | A2FM250/60WPZB020J | A2FM250/60WVZB020 | A2FM250/60WVZB020J |
| A2FM250/60WPPB020 | A2FM250/60WPPB020J | A2FM250/60WVPB020 | A2FM250/60WVPB020J |
| A2FM250/60WPZB027F | A2FM250/60WPZB027FJ | A2FM250/60WVZB027F | A2FM250/60WVZB027FJ |
| A2FM250/60WPPB027F | A2FM250/60WPPB027FJ | A2FM250/60WVPB027F | A2FM250/60WVPB027FJ |
| A2FM250/60WPZB010F | A2FM250/60WPZB010FJ | A2FM250/60WVZB010F | A2FM250/60WVZB010FJ |
| A2FM250/60WPPB010F | A2FM250/60WPPB010FJ | A2FM250/60WVPB010F | A2FM250/60WVPB010FJ |
| A2FM250/60WPZB020F | A2FM250/60WPZB020FJ | A2FM250/60WVZB020F | A2FM250/60WVZB020FJ |
| A2FM250/60WPPB020F | A2FM250/60WPPB020FJ | A2FM250/60WVPB020F | A2FM250/60WVPB020FJ |
| A2FM250/60WPZB027H | A2FM250/60WPZB027HJ | A2FM250/60WVZB027H | A2FM250/60WVZB027HJ |
| A2FM250/60WPPB027H | A2FM250/60WPPB027HJ | A2FM250/60WVPB027H | A2FM250/60WVPB027HJ |
| A2FM250/60WPZB010H | A2FM250/60WPZB010HJ | A2FM250/60WVZB010H | A2FM250/60WVZB010HJ |
| A2FM250/60WPPB010H | A2FM250/60WPPB010HJ | A2FM250/60WVPB010H | A2FM250/60WVPB010HJ |
| A2FM250/60WPZB020H | A2FM250/60WPZB020HJ | A2FM250/60WVZB020H | A2FM250/60WVZB020HJ |
| A2FM250/60WPPB020H | A2FM250/60WPPB020HJ | A2FM250/60WVPB020H | A2FM250/60WVPB020HJ |
| | | | |
| A2FLM250/60WPZB027 | A2FLM250/60WPZB027J | A2FLM250/60WVZB027 | A2FLM250/60WVZB027J |
| A2FLM250/60WPPB027 | A2FLM250/60WPPB027J | A2FLM250/60WVPB027 | A2FLM250/60WVPB027J |
| A2FLM250/60WPZB010 | A2FLM250/60WPZB010J | A2FLM250/60WVZB010 | A2FLM250/60WVZB010J |
| A2FLM250/60WPPB010 | A2FLM250/60WPPB010J | A2FLM250/60WVPB010 | A2FLM250/60WVPB010J |
| A2FLM250/60WPZB020 | A2FLM250/60WPZB020J | A2FLM250/60WVZB020 | A2FLM250/60WVZB020J |
| A2FLM250/60WPPB020 | A2FLM250/60WPPB020J | A2FLM250/60WVPB020 | A2FLM250/60WVPB020J |
| A2FLM250/60WPZB027F | A2FLM250/60WPZB027FJ | A2FLM250/60WVZB027F | A2FLM250/60WVZB027FJ |
| A2FLM250/60WPPB027F | A2FLM250/60WPPB027FJ | A2FLM250/60WVPB027F | A2FLM250/60WVPB027FJ |
| A2FLM250/60WPZB010F | A2FLM250/60WPZB010FJ | A2FLM250/60WVZB010F | A2FLM250/60WVZB010FJ |
| A2FLM250/60WPPB010F | A2FLM250/60WPPB010FJ | A2FLM250/60WVPB010F | A2FLM250/60WVPB010FJ |
| A2FLM250/60WPZB020F | A2FLM250/60WPZB020FJ | A2FLM250/60WVZB020F | A2FLM250/60WVZB020FJ |
| A2FLM250/60WPPB020F | A2FLM250/60WPPB020FJ | A2FLM250/60WVPB020F | A2FLM250/60WVPB020FJ |
| A2FLM250/60WPZB027H | A2FLM250/60WPZB027HJ | A2FLM250/60WVZB027H | A2FLM250/60WVZB027HJ |
| A2FLM250/60WPPB027H | A2FLM250/60WPPB027HJ | A2FLM250/60WVPB027H | A2FLM250/60WVPB027HJ |
| A2FLM250/60WPZB010H | A2FLM250/60WPZB010HJ | A2FLM250/60WVZB010H | A2FLM250/60WVZB010HJ |
| A2FLM250/60WPPB010H | A2FLM250/60WPPB010HJ | A2FLM250/60WVPB010H | A2FLM250/60WVPB010HJ |
| A2FLM250/60WPZB020H | A2FLM250/60WPZB020HJ | A2FLM250/60WVZB020H | A2FLM250/60WVZB020HJ |
| A2FLM250/60WPPB020H | A2FLM250/60WPPB020HJ | A2FLM250/60WVPB020H | A2FLM250/60WVPB020HJ |
| A2FM355/60WPZH017 | A2FM355/60WPZH017J | A2FM355/60WVZH017 | A2FM355/60WVZH017J |
| A2FM355/60WPPH017 | A2FM355/60WPPH017J | A2FM355/60WVPH017 | A2FM355/60WVPH017J |
| A2FM355/60WPZH010 | A2FM355/60WPZH010J | A2FM355/60WVZH010 | A2FM355/60WVZH010J |
| A2FM355/60WPPH010 | A2FM355/60WPPH010J | A2FM355/60WVPH010 | A2FM355/60WVPH010J |
| A2FM355/60WPZH017F | A2FM355/60WPZH017FJ | A2FM355/60WVZH017F | A2FM355/60WVZH017FJ |
| A2FM355/60WPPH017F | A2FM355/60WPPH017FJ | A2FM355/60WVPH017F | A2FM355/60WVPH017FJ |
| A2FM355/60WPZH010F | A2FM355/60WPZH010FJ | A2FM355/60WVZH010F | A2FM355/60WVZH010FJ |
| A2FM355/60WPPH010F | A2FM355/60WPPH010FJ | A2FM355/60WVPH010F | A2FM355/60WVPH010FJ |
| A2FM355/60WPZH017H | A2FM355/60WPZH017HJ | A2FM355/60WVZH017H | A2FM355/60WVZH017HJ |
| A2FM355/60WPPH017H | A2FM355/60WPPH017HJ | A2FM355/60WVPH017H | A2FM355/60WVPH017HJ |
| A2FM355/60WPZH010H | A2FM355/60WPZH010HJ | A2FM355/60WVZH010H | A2FM355/60WVZH010HJ |
| A2FM355/60WPPH010H | A2FM355/60WPPH010HJ | A2FM355/60WVPH010H | A2FM355/60WVPH010HJ |
| | | | |
| A2FLM355/60WPZH017 | A2FLM355/60WPZH017J | A2FLM355/60WVZH017 | A2FLM355/60WVZH017J |
| A2FLM355/60WPPH017 | A2FLM355/60WPPH017J | A2FLM355/60WVPH017 | A2FLM355/60WVPH017J |
| A2FLM355/60WPZH010 | A2FLM355/60WPZH010J | A2FLM355/60WVZH010 | A2FLM355/60WVZH010J |
| A2FLM355/60WPPH010 | A2FLM355/60WPPH010J | A2FLM355/60WVPH010 | A2FLM355/60WVPH010J |
| A2FLM355/60WPZH017F | A2FLM355/60WPZH017FJ | A2FLM355/60WVZH017F | A2FLM355/60WVZH017FJ |
| A2FLM355/60WPPH017F | A2FLM355/60WPPH017FJ | A2FLM355/60WVPH017F | A2FLM355/60WVPH017FJ |
| A2FLM355/60WPZH010F | A2FLM355/60WPZH010FJ | A2FLM355/60WVZH010F | A2FLM355/60WVZH010FJ |
| A2FLM355/60WPPH010F | A2FLM355/60WPPH010FJ | A2FLM355/60WVPH010F | A2FLM355/60WVPH010FJ |
| A2FLM355/60WPZH017H | A2FLM355/60WPZH017HJ | A2FLM355/60WVZH017H | A2FLM355/60WVZH017HJ |
| A2FLM355/60WPPH017H | A2FLM355/60WPPH017HJ | A2FLM355/60WVPH017H | A2FLM355/60WVPH017HJ |
| A2FLM355/60WPZH010H | A2FLM355/60WPZH010HJ | A2FLM355/60WVZH010H | A2FLM355/60WVZH010HJ |
| A2FLM355/60WPPH010H | A2FLM355/60WPPH010HJ | A2FLM355/60WVPH010H | A2FLM355/60WVPH010HJ |
| A2FM500/60WPZH017 | A2FM500/60WPZH017J | A2FM500/60WVZH017 | A2FM500/60WVZH017J |
| A2FM500/60WPPH017 | A2FM500/60WPPH017J | A2FM500/60WVPH017 | A2FM500/60WVPH017J |
| A2FM500/60WPZH010 | A2FM500/60WPZH010J | A2FM500/60WVZH010 | A2FM500/60WVZH010J |
| A2FM500/60WPPH010 | A2FM500/60WPPH010J | A2FM500/60WVPH010 | A2FM500/60WVPH010J |
| A2FM500/60WPZH017F | A2FM500/60WPZH017FJ | A2FM500/60WVZH017F | A2FM500/60WVZH017FJ |
| A2FM500/60WPPH017F | A2FM500/60WPPH017FJ | A2FM500/60WVPH017F | A2FM500/60WVPH017FJ |
| A2FM500/60WPZH010F | A2FM500/60WPZH010FJ | A2FM500/60WVZH010F | A2FM500/60WVZH010FJ |
| A2FM500/60WPPH010F | A2FM500/60WPPH010FJ | A2FM500/60WVPH010F | A2FM500/60WVPH010FJ |
| A2FM500/60WPZH017H | A2FM500/60WPZH017HJ | A2FM500/60WVZH017H | A2FM500/60WVZH017HJ |
| A2FM500/60WPPH017H | A2FM500/60WPPH017HJ | A2FM500/60WVPH017H | A2FM500/60WVPH017HJ |
| A2FM500/60WPZH010H | A2FM500/60WPZH010HJ | A2FM500/60WVZH010H | A2FM500/60WVZH010HJ |
| A2FM500/60WPPH010H | A2FM500/60WPPH010HJ | A2FM500/60WVPH010H | A2FM500/60WVPH010HJ |
| | | | |
| A2FLM500/60WPZH017 | A2FLM500/60WPZH017J | A2FLM500/60WVZH017 | A2FLM500/60WVZH017J |
| A2FLM500/60WPPH017 | A2FLM500/60WPPH017J | A2FLM500/60WVPH017 | A2FLM500/60WVPH017J |
| A2FLM500/60WPZH010 | A2FLM500/60WPZH010J | A2FLM500/60WVZH010 | A2FLM500/60WVZH010J |
| A2FLM500/60WPPH010 | A2FLM500/60WPPH010J | A2FLM500/60WVPH010 | A2FLM500/60WVPH010J |
| A2FLM500/60WPZH017F | A2FLM500/60WPZH017FJ | A2FLM500/60WVZH017F | A2FLM500/60WVZH017FJ |
| A2FLM500/60WPPH017F | A2FLM500/60WPPH017FJ | A2FLM500/60WVPH017F | A2FLM500/60WVPH017FJ |
| A2FLM500/60WPZH010F | A2FLM500/60WPZH010FJ | A2FLM500/60WVZH010F | A2FLM500/60WVZH010FJ |
| A2FLM500/60WPPH010F | A2FLM500/60WPPH010FJ | A2FLM500/60WVPH010F | A2FLM500/60WVPH010FJ |
| A2FLM500/60WPZH017H | A2FLM500/60WPZH017HJ | A2FLM500/60WVZH017H | A2FLM500/60WVZH017HJ |
| A2FLM500/60WPPH017H | A2FLM500/60WPPH017HJ | A2FLM500/60WVPH017H | A2FLM500/60WVPH017HJ |
| A2FLM500/60WPZH010H | A2FLM500/60WPZH010HJ | A2FLM500/60WVZH010H | A2FLM500/60WVZH010HJ |
| A2FLM500/60WPPH010H | A2FLM500/60WPPH010HJ | A2FLM500/60WVPH010H | A2FLM500/60WVPH010HJ |
| A2FLM710/60WPZH017 | A2FLM710/60WPZH017J | A2FLM710/60WVZH017 | A2FLM710/60WVZH017J |
| A2FLM710/60WPPH017 | A2FLM710/60WPPH017J | A2FLM710/60WVPH017 | A2FLM710/60WVPH017J |
| A2FLM710/60WPZH010 | A2FLM710/60WPZH010J | A2FLM710/60WVZH010 | A2FLM710/60WVZH010J |
| A2FLM710/60WPPH010 | A2FLM710/60WPPH010J | A2FLM710/60WVPH010 | A2FLM710/60WVPH010J |
| A2FLM710/60WPZH017 | A2FLM710/60WPZH017J | A2FLM710/60WVZH017 | A2FLM710/60WVZH017J |
| A2FLM710/60WPPH017 | A2FLM710/60WPPH017J | A2FLM710/60WVPH017 | A2FLM710/60WVPH017J |
| A2FLM710/60WPZH010 | A2FLM710/60WPZH010J | A2FLM710/60WVZH010 | A2FLM710/60WVZH010J |
| A2FLM710/60WPPH010 | A2FLM710/60WPPH010J | A2FLM710/60WVPH010 | A2FLM710/60WVPH010J |
– A2FM motors are designed for use in open and closed circuits.
– Project planning, installation and commissioning of axial piston units must be carried out by qualified personnel.
– Before using the axial piston unit, read the corresponding instruction manual completely. Available on request from Bosch Rexroth.
– Risk of burns from the axial piston unit during and shortly after operation. Appropriate safety measures should be taken (eg wearing protective clothing).
– The characteristics of the axial piston unit may vary due to different operating conditions (operating pressure, fluid temperature).
– Work line ports:
· Ports and fixing threads are designed for maximum specified pressure. The machine or system manufacturer must ensure that the safety factors of connecting elements and lines meet the specified operating conditions (pressure, flow, hydraulic oil, temperature).
• Work line ports and function ports are for hydraulic lines only.
– The data and instructions contained here must be followed.
– The product cannot be approved as a component following the general safety concept of machinery of ISO13849.
– Use the following tightening torques:
· Connector:
See the manufacturer's instructions for the tightening torque of the fittings used.
· Mounting bolts:
For mounting bolts with ISO metric threads in accordance with DIN13 and threads in accordance with ASMEB1.1, we recommend checking the tightening torques of the individual housings according to VDI2230.
· Threaded hole for axial piston unit:
The maximum permissible tightening torque MGmax is the maximum value for threaded holes and must not be exceeded.
· Locking screws:
For the metal locking screws supplied with the axial piston unit, the tightening torque MV required for the locking screw should be used.
Installation Precautions
During commissioning and operation, the axial piston unit must always be filled with hydraulic oil and vented with air. The above precautions must also be observed after a relatively long period of inactivity, since the axial piston unit may drain hydraulic oil back into the tank via the hydraulic line.
Especially in the "transmission shaft up" installation position, oil filling and exhaust must be carried out thoroughly, otherwise there will be dangers such as oil-free operation.
drain oil in the pump housing must be drained to the tank through the highest drain ports (T1, T2).
For combinations of multiple devices, ensure that the corresponding pressure for each device is not exceeded. When a differential pressure exists at the drain ports of the equipment, the common drain line must be replaced so that the minimum allowable pressure for all connected equipment is not exceeded under any circumstances. If this is not possible, a separate drain line should be laid if necessary.
To obtain favorable noise values, all connecting lines should be separated with elastic elements and installation above the tank should be avoided.
Under all operating conditions, the drain line must lead to a point below the minimum oil level in the tank.
